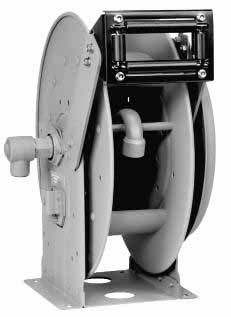

N800 Industrial Hose Reel

For 3/4 or 1 Inch ID Hose

Spring Rewind

Up to 2000 psi and 250 F Temp

• Standard N series has a narrow frame and compact mounting base.

• Non sparking ratchet assembly.

• Declutching arbor to prevent damage from reverse winding.

• Standard inlet 90° balanced pressure swivel joint 1" female NPT threads.

• Standard outlet 1" female NPT threads.

• Pressures to 2000 psi (138 bar).

• Temperatures from -40° F to +250° F (-40° C to +121° C).

• Consult factory for other pressures & temps.

• 4-way roller assembly

• Constant Tension is available

For:

• Fuel Dispensing

• Waste Oil Evacuation

• Air/Water
