Hannay Reels

Hannay Industrial Hose Reel

Series 3000 Industrial Hose Reel

Series 3000 Industrial Hose Reel

Series 3000 Industrial Hose Reel

For 3/4 or 1 Inch ID Hose

Manual Rewind

Up to 2000 psi and 250 F Temp

Information Required to Quote Hose or Cable Reels

Purchase ONLINE Select Stock Hose and Cable Reels

Hose and Line Reel Color Choices

• Economical manual rewind reels for long lengths of hose.

• Choose disc rewind or removable direct crank rewind.

• Supplied with spring-actuated pin lock.

• Standard inlet 90° ball bearing swivel joint 1" female NPT threads.

• Standard outlet 1" female NPT thread.

• Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available

Optional Rollers may be purchased.

• Pressures to 2000 psi (138 bar).

• Temperatures from -60° F to +250° F (-51° C to +121° C).

• Consult PM&I for other pressures & temps.

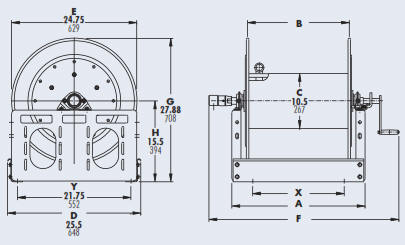

Series 3000 Industrail Hose Reel Drawing

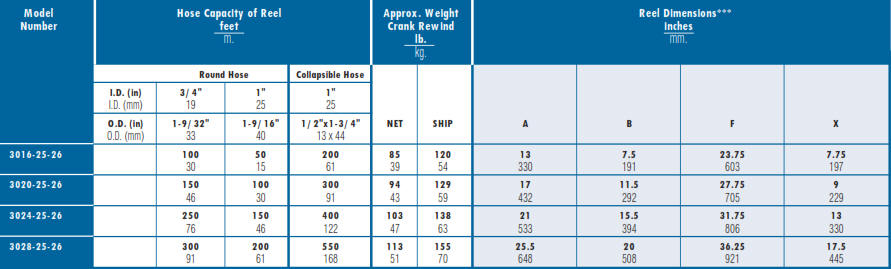

Series 3000 Industrial Hose Reel Chart

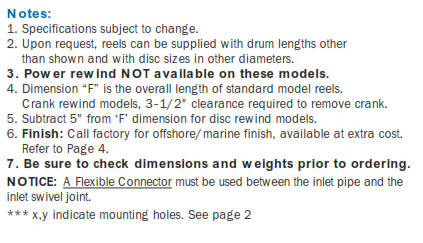

Series 3000 Industrial Hose Reel Notes
