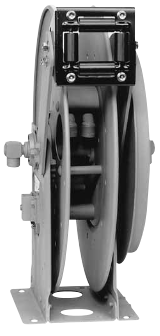

N600 Duel Hose Reel
For 1/4 thru 1/2 Inch ID Hose
Spring Rewind
Up to 3000 psi and 250 F Temp
Information Required to Quote Hose or Cable Reels
Purchase ONLINE Select Stock Hose and Cable Reels
Hose and Line Reel Color Choices
• Narrow frame and compact mounting base.
• Non sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlets 90° balanced pressure swivel joints 1/2" female NPT threads.
• Standard outlets 1/2" female NPT threads.
• Pressures to 3000 psi (207 bar)
• Temperatures from -60° F to +250° F (-51ºC to +121ºC).
• Consult factory for other pressures & temps.
• 4-way roller assembly.
• Constant Tension is available
For:
• Hydraulics
• Air/Water
• Spray Painting
