Hannay Reels

Hannay Industrial Hose Reel

C1500 Hose Storage Reel

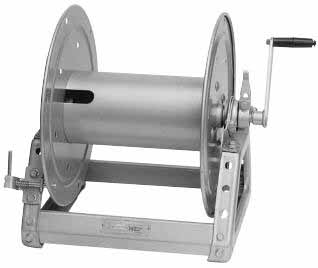

C1500 Industrial Hose Storage Reel

C1500 Hose Storage Reel

For 1/4 through 1 Inch ID Hose

Manual or Power Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



Reels are designed for storage of long lengths of hose, cable, rope, wire or other materials.

• A 1-1/8" x 2-3/8" (28 mm x 60 mm) opening in the drum to initiate winding.

• Direct crank rewind, permanently attached. Removable crank option is available.

Also available chain and sprocket rewind powered by electric, compressed air, or hydraulic motor.

• Supplied with cam lock brake on manual rewind models only.

• Optional divider discs can be placed at almost any point.

Be sure to specify spacing of discs on your order.

• Rollers may be purchased as accessory items.



For Storage Of:

• Hose

• Cable

• Rope

• Wire

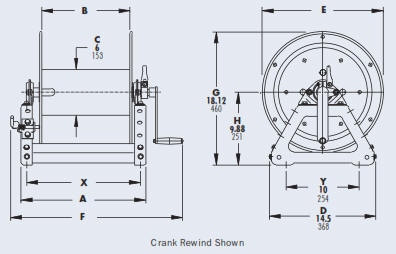

c1500 industrial hose storage reel drawing

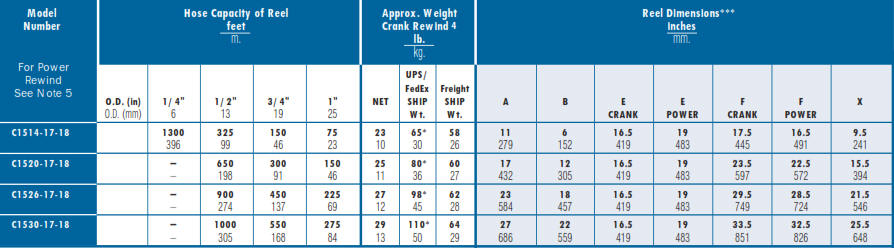

c1500 industrial hose storage reel chart

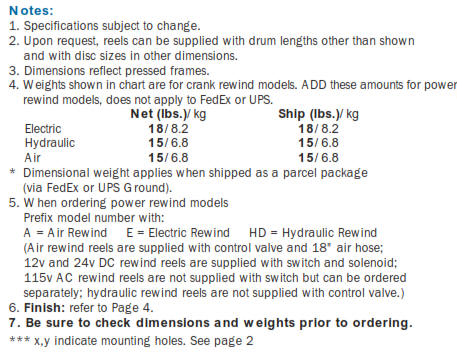

industrial hose reel c1500 notes
