Information Required to Quote Hose or Cable Reels
Purchase ONLINE Select Stock Hose and Cable Reels
Hose and Line Reel Color Choices

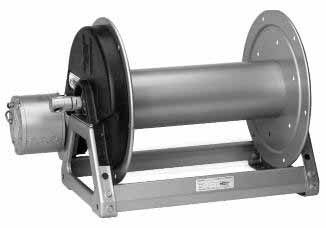

• Lightweight compact reels designed for long lengths of hose in manual and power rewind.
• Direct crank rewind is permanently attached.
• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
• Manual reels include: cam-lock drag brake, spring actuated pin lock.
• Standard inlet 90° ball bearing swivel joint 1/2" female NPT threads.
• Standard outlet 1/2" female NPT threads.
• Optional Rollers: Specify roller position when ordering.
• Pressures to 3000 psi (207 bar)
• Temperatures from +20° F to +400° F (-7° C to +204° C).
• Consult PM&I for other pressures & temps.
For:
• Lawn Care
• Pest Control
• Pressure Washing
• Agriculture
• Steam Cleaning
