Hannay Reels

Hannay Industrial Hose Reel

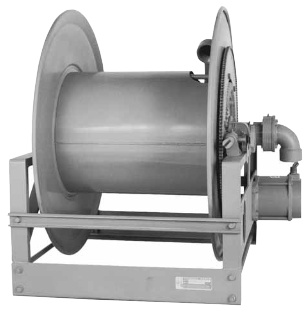

Series 8000 Industrial Hose Reel

Series 8000 Industrial Hose Reel
Series 8000 Industrial Hose Reel
For 1 1/2 or 2 Inch ID Hose
Manual or Power Rewind
Up to 600 psi and 175 F Temp



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



• Heavy-duty reel designed for longer lengths and larger diameters of hose through 2" I.D.

• Choose gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air motor.

• Crank rewind reels supplied with a pinion brake, power rewind reels with a comet brake.

• Standard inlet 90° ball bearing swivel joint 2" female NPT threads.

• Standard outlet flanged riser 2" female NPT threads

• Standard inlet, outlet riser and hub assembly are steel.

Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available.

• Rollers may be purchased as accessory items.

• Pressures to 600 psi (41 bar).

• Temperatures from -60° F to +175° F (-51° C to +79° C).

• Consult PM&I for other pressures & temps.



For:

• Bulk Transfer

• Chemical Transfer

• General Dispensing

• Suction/Discharge (consult PM&I)

• Fueling Applications Refer to:

Aviation Catalog

H-0418-AVIA

Petroleum Catalog

H-0417-FD

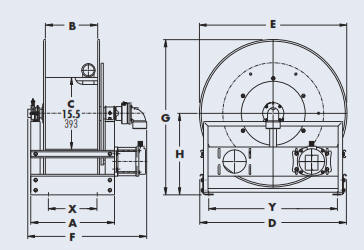

Series 8000 Industrial Hose Reel Drawing

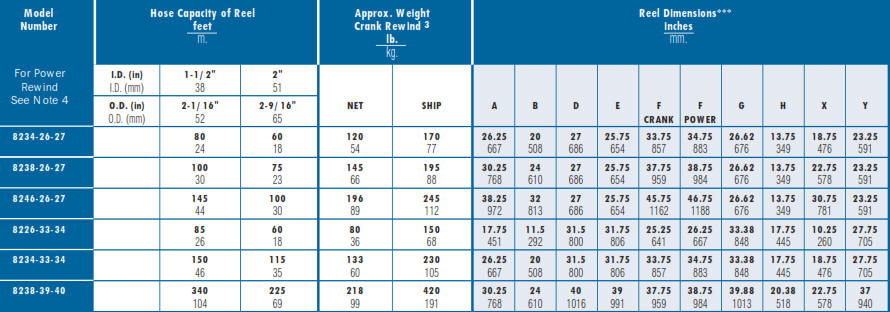

Series 8000 Industrial Hose Reel Chart

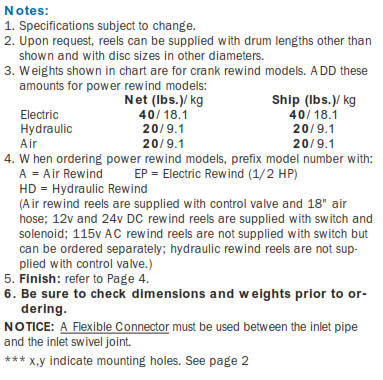

Industrial Hose Reel Series 8000 Notes
