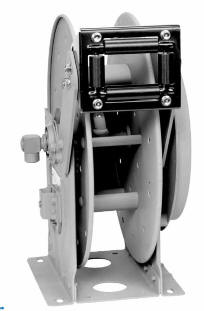

N700 Industrial Hose Reel

For 1/4 thru 1/2 Inch ID Hose

Spring Rewind

Up to 3000 psi and 250 F Temp

• Standard N Series has a narrow frame and compact mounting base.

• Non sparking ratchet assembly.

• Declutching arbor to prevent damage from reverse winding.

• Standard inlet 90° balanced pressure swivel joint 1/2" female NPT threads.

• Standard outlet 1/2" female NPT threads.

• Standard Pressures to 3000 psi (207 bar) (available up to10,000 psi 690 bar).

• Temperatures from -60° F to +250° F (-51° C to +121° C).

• Consult factory for other pressures & temps.

• 4-way roller assembly.

• Constant Tension is available

For:

• Lubrication

• Air/Water

• Assembly Operations

• Washdown

• Air Tools
