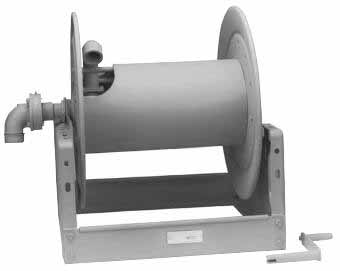

• Economical manual rewind reels for long lengths of hose.

• Choose disc rewind or removable direct crank rewind.

• Supplied with spring-actuated pin lock.

• Standard inlet 90° swivel joint 1-1/2" female NPT threads and 2" victaulic groove.

• Standard outlet flanged riser with 1-1/2" female NPT threads.

• Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available

• Optional Rollers may be purchased.

• Pressures to 600 psi (41 bar)

• Temperatures from -60° F to +175° F (-51° C to +79° C).

• Consult PM&I for other pressures & temps.

• Fuel Dispensing (Consult PM&I)

• Bulk Transfer

• Fire Protection
