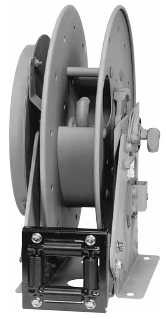

N500 High Pressure Hose Reel

For 1/4 or 3/8 Inch ID Hose

Spring Rewind

Up to 10,000 psi and 250 F Temp

• Compact frame and narrow base.

• Non sparking ratchet assembly.

• Declutching arbor to prevent damage from reverse winding.

• Standard inlet 90° swivel joint 1/4" female NPT threads. 3/8" female NPT threads are optional and must be specified.

• Standard outlet is 1/4" female NPT threads. 3/8" female NPT threads are optional and must be specified.

• Other threads can be furnished and must be specified.

• Standard pressure of 10,000 psi (689 bar), product temperatures from -40° F to +250° F (-40° C to +121° C).

Optional 1/4" 3000 psi (207 bar), or 3/8" 3000 psi (207 bar) or 8000 psi (552 bar) are available upon request.

• 4-way roller assembly.

• Constant Tension is available
