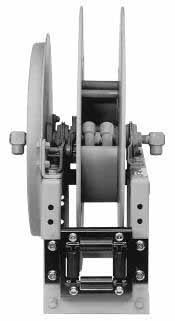

Series 600 Dual Hose Reel

For 1/4 thru 3/4 Inch ID Hose

Spring Rewind

Up to 3000 psi and 250 F Temp

• Rollformed channel frame for heavy duty applications.

• Non sparking ratchet assembly.

• Declutching arbor to prevent damage from reverse winding.

• Standard inlets 90° balanced pressure swivel joints 1/2" female NPT threads. (1" inlet available).

• Standard outlets 1/2" female NPT threads. (3/4" outlet available).

• Pressures to 3000 psi (207 bar)

• Temperatures from -60° F to +250° F (-51ºC to +121ºC).

• Consult PM&I for other pressures & temps.

• 4-way roller assembly.

• Constant Tension is available.

For:

• Hydraulics

• Air/Water

• Spray Painting
