Industrial Heavy Duty Hose Reel & Cable Reel

Portable Cable Reel

AVD Series

Audio Video Portable Cable Storage Reel With Divider

AVD1 Audio Video Cable Reel

AVD2 Audio Video Cable Reel avd series cabel reels

AVD-1

AVD-2 AVD-3
With Caster Mounting Plates With Optional Casters and With Optional Casters

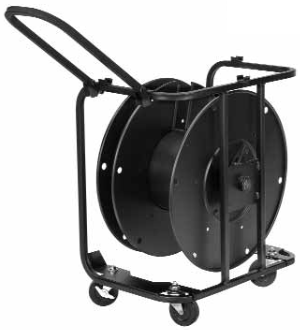

  Pull Handle



Similar in construction to the AV Series cable reels, the primary advantage of a AVD Series reel is the addition of a slotted divider disc within the reel spool. This divider disc provides a convenient way for the user to have unobstructed access to both cable connector ends. With this feature, it is easy to pull off any length of cable and still have access to both connectors. There is no need to pull the entire length of cable off the reel before using it.


Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices


Communication, broadcast, and pro-audio applications.
Rugged steel frame and aluminum spool construction.
Black, non-reflective matte finish.
Slotted divider disc provides 2" wide space for storage of short cable.
Frame clips allow stacking of reels.
Adjustable Cam-lock drag brake locks cable in place.
Optional heavy-duty, locking caster wheels available.
Pull handle available for AVD-2 and AVD-3 (part number 9949.0500)

AVD-3 only — side mounted punchable connector panels are standard.


Audio Video Portable Cable Storage Reel With Divider
AVD-1

 Audio Video Portable Cable Storage Reel With Divider
AVD-2

Audio Video Portable Cable Storage Reel With Divider
AVD-3

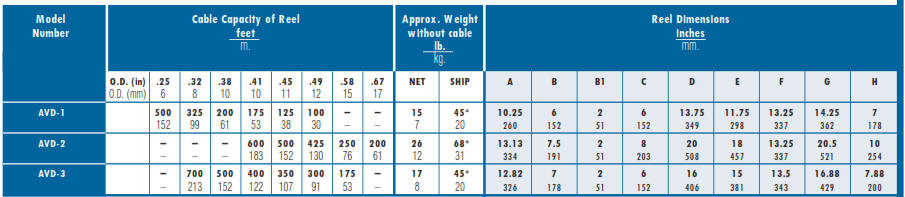

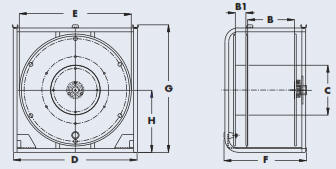

AVD Series Audio Video Cable Reel Chart

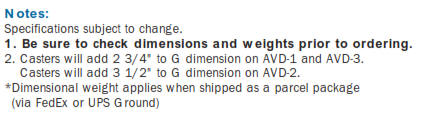

AVD Series Audio Video Cable Reel Notes
