Industrial Heavy Duty Hose Reel & Cable Reel

Portable Cable Reel

AVC1150 and AVATC1250 Series

Audio Video Portable Cable Storage Reel

avatc1250 portable cable storage reel

avc1150 portable cable storage reel

AVATC1250

AVC1150

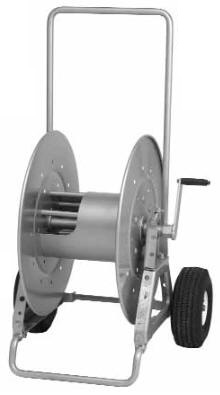

Shown in Painted Silver

Shown with Optional Folding Handle



These direct crank rewind reels are equipped with one-piece foot, and removable steel handlebar for long-term storage and shipping.

 Cam-lock brake is standard.

 A non-reflective black matte finish is standard.

 For compact storage, optional folding handle or removable crank handle are available.

 Optional divider discs are available.



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



AVC1150

Hard Rubber tires and a 7/8" x 1 3/4" (22.2 mm x 44.4 mm)

opening in the drum. Optional pneumatic tires available, see note 2.



AV ATC1250

Pneumatic tires and a 4" x 5 1/2" (101.6 mm x 139.7 mm) drum opening.

Large capacity spool.

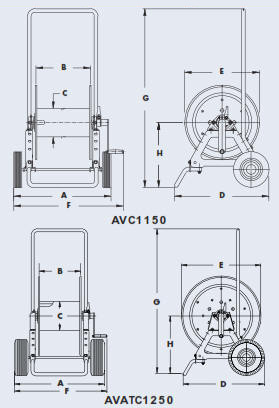

avc1150 and av atc1250 portable cable storage reels drawing

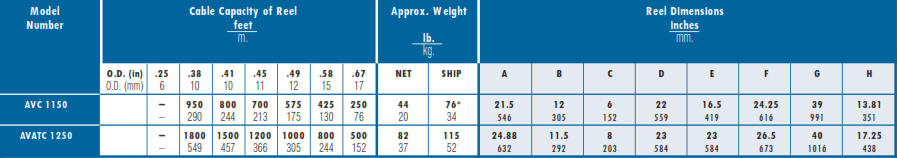

avatc1250 and AVC1150 portable cable storage reel chart

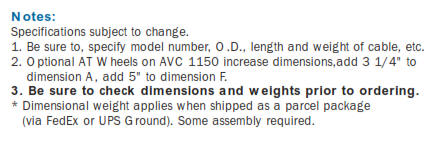

avc1150 portable cable storage reel notes
