Industrial Heavy Duty Hose Reel & Cable Reel

Portable Cable Reel

AVC Series

Audio Video Portable Cable Storage Reel

AVC Audio Video Cable Reel

AVC16-10-11-DE Audio Video Cable Reel

AVC16-14-16-DE audio video cable reel

AVC20-14-16-DE audio video cable reel

AVC16-10-11

AVC16-10-11-DE

AVC16-14-16-DE

AVC20-14-16-DE

Standard Configuration

Shown With

Shown With

Shown With

Optional Drum Extension

Optional Drum Extension

Optional Drum Extension

Rugged steel & aluminum construction.

Equipped with Velcro cable fastener.

Non-reflective black matte finish standard.

Optional Storage Drum Extension.

Adjustable Cam-lock drag brake.



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



AVC16-10-11

Crank handle permanently attached to the disc.



AVC16-14-16 and AVC 20-14-16

Direct crank rewind.

Optional PL-1 pin lock available.

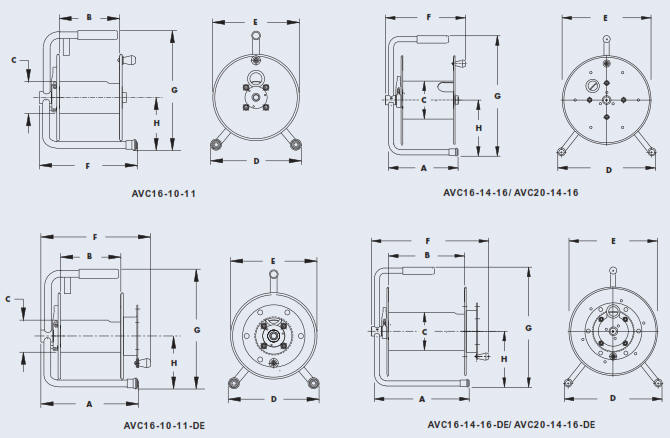

AVC audio vidio cable reel drawings

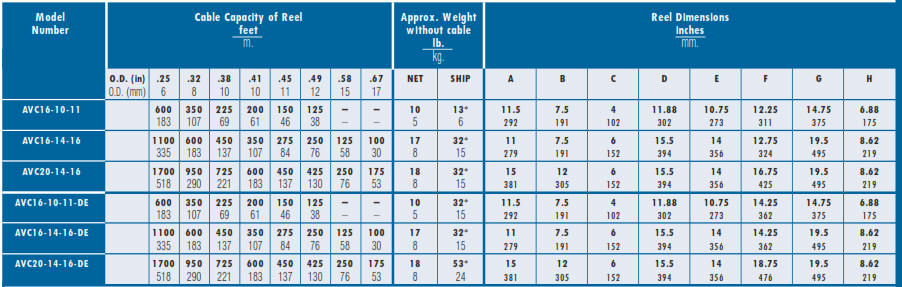

avc seriies audio video cable reel chart



avc audio video cable reel notes
