Industrial Heavy Duty Hose Reel & Cable Reel

Power Cord Reels

SCR700 and NSCR700 Cable Reel

For Live Electric Cable

cable reel scr700 with spring rewind

 cable reel nscr700 standard configuration

SCR700 Cable Reel with Spring Rewind

 NSCR700 Cable Reel with Spring Rewind

Standard Configuration Shown

 Standard Configuration Shown

Spring Rewind Electric Cable Reels
To Handle Live Electric Cable


Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels


Hose and Line Reel Color Choices


Heavy-duty spring motor.
Non sparking ratchet.
Declutching arbor.
Consult PM&I for constant tension applications.

3-conductor 45 amp 600 volt collector assembly with #8 gauge wiring.

Double brushes per circuit. Brushes are copper graphite with copper alloy rings.

Additional conductors or higher amperage (up to 300 amps) available, consult factory.
Silver collector available.

Supplied with a 4-way roller assembly. Roller position must be specified.
A cable stop should be used.

For vertical lift, stretch and/or crane installation, consult PM&I for proper spring specifications.

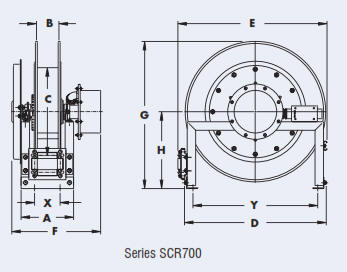

scr700 cable reel drawing

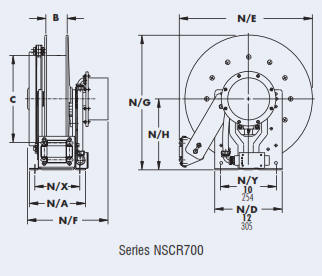

nscr cable reel drawing

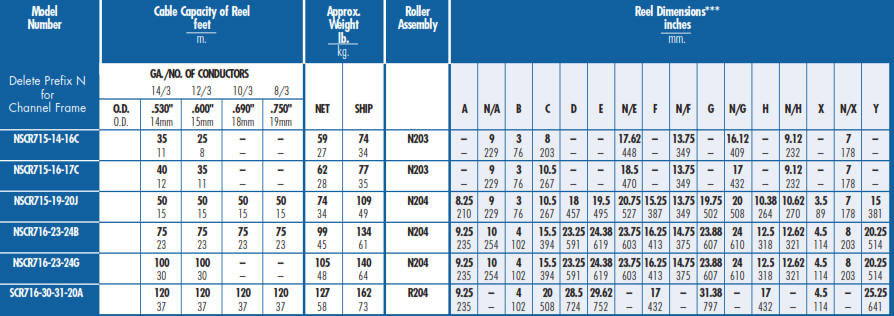

scr700 and nscr700 cable reel drawings

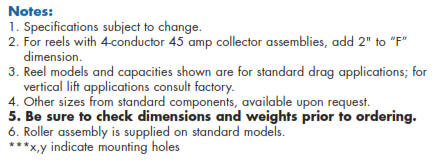

scr700 and nscr700 cable reel notes electric
