Industrial Heavy Duty Hose Reel & Cable Reel

Power Cord Reels

c series cable storage reel

For Storage Only. No Live Connections.

Manual and Power Rewind

Heavy-duty reels.

4-1/2" x 4-1/2" (114.3 mm x 114.3 mm) opening in the drum.

Many optional configurations available.

Gear driven crank rewind; or chain and sprocket drive powered by electric, compressed air, or hydraulic motor.

Auxiliary crank rewind is available on power reels.

Crank rewind reels supplied with pinion brake.

Power rewind standard with a comet brake.

Consult factory for other brakes and locking devices.

Rollers and roller mounting brackets are accessory items. Specify roller position.

Divider discs available. Specify spacing.

Drum diameters other than the standard are available.

Note: larger drum diameter reduces reel capacity.

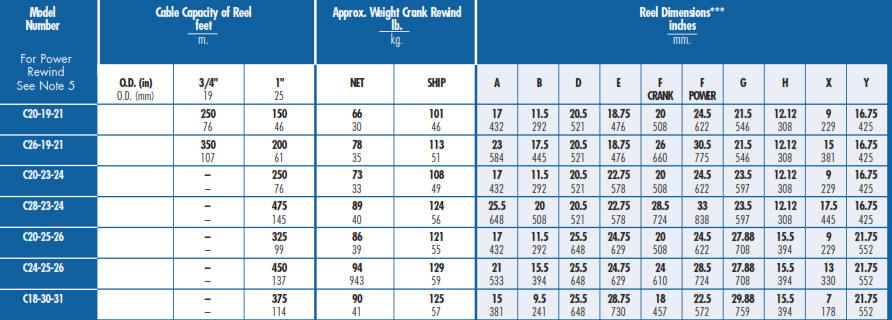

c series cable reel chart
