Industrial Heavy Duty Hose Reel & Cable Reel

Power Cord Reels

SCR10-17-19 Cable Reel

Spring Rewind - For Live Electric Cable

cable reel scr10-17-18

scr10-17-19 cable reel roller bracker

SCR10-17-19 Cable Reel

Optional Roller Mounting

Part Number 9939.0004

Spring Rewind

For Live Electric Cable

Information Required to Quote Hose or Cable Reels

Purchase ONLINE Select Stock Hose and Cable Reels

Hose and Line Reel Color Choices

Heavy-duty spring motor.

Non sparking ratchet assembly.

Declutching arbor.

3-conductor 30 amp.

6 foot power source.

15 amp, 3 prong straight blade plug provided standard. (Twistlock plug is optional)

Cable stop should be used.

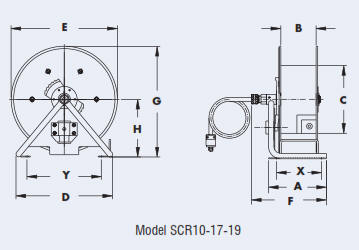

cable reel scr10-17-19 drawing

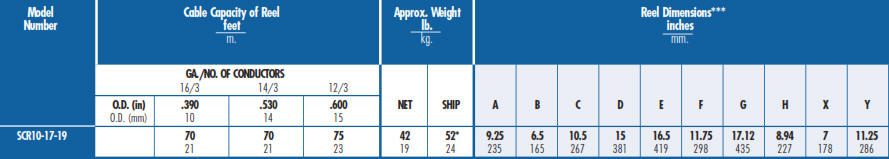

cable reel scr10-17-19 chart

cable reel scr10-17-19 notes
