Industrial Heavy Duty Hose Reel & Cable Reel

Power Cord Reels

CR Series Cable Reel

cable reel cr series for live electric cable

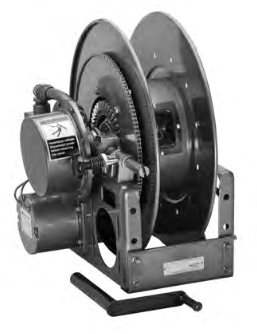

ECR 1600 Cable Reel Electric Rewind

cable reel ecr6600 power rewind

Series CR1600 - Manual Rewind

ECR1600 - Power Rewind

ECR6600 Power Rewind

Left Top Shown (Right Top Standard)

Standard Configuration

Optional Left Top Configuration Shown



To Handle Live Electric Cable

3-conductor 45 amp 600 volt collector assembly with #8 gauge wiring.

Double brushes per circuit. Brushes are copper graphite, copper alloy rings.

Additional conductors or higher amperage (up to 100 amps) are available at extra cost, must be specified.

 (300 amps possible with custom design).

Silver collector assemblies are available.

Rollers and roller mounting brackets are accessory items. Specify roller position.



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



Series CR1600

Removable direct crank rewind.

Adjustable Cam-lock drag brake.



Series ECR1600*

Optional drag brake is available.

Some roller options may prohibit the use of our molded chain guard.

*For CR reels with minimized height or depth requirements contact PM&I sales staff





Series CR6600

Gear-driven crank rewind.



Series ECR6600

Chain and sprocket drive powered by electric, compressed air, or hydraulic motor.

 Auxiliary rewind and pinion brake standard.

Consult factory for other brakes.

Optional chain guards are available upon request..

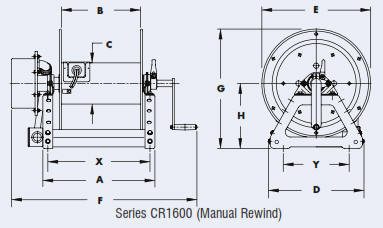

cr1600 cable reel drawing

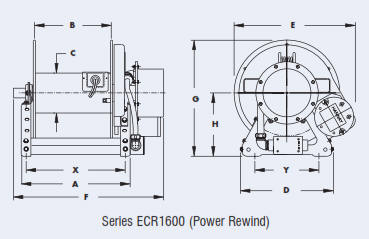

ECR1600 cable reel drawing

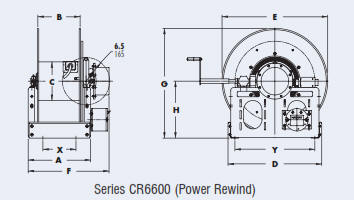

cr6600 cable reel drawing

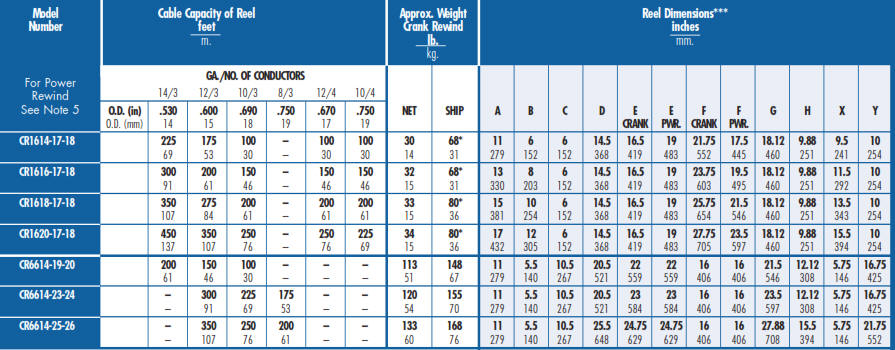

cr series cable reel chart



cr series cable reel notes
