Hannay Reels

Hannay Stainless Hose Reel

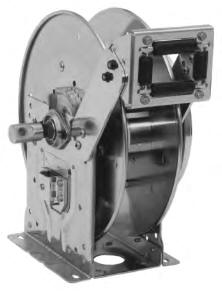

Series SSN700 Stainless Steel Hose Reel

Series SSN700 Stainless Steel Reel

Series SSN700 Stainless Reel

To Handle 1/4 thru 1/2 Inch ID Hose

Up to 3000 psi and 400 Degrees F
Spring Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



• Standard SSN Series has a narrow frame and compact mounting base.

• Non sparking ratchet assembly.

• Declutching arbor to prevent damage from reverse winding.

• Standard inlet 90° stainless steel ball bearing swivel joint 1/2" female NPT threads.

• Standard outlet 1/2" female NPT threads.

• Standard Pressures to 3000 psi (207 bar).

Temperatures from +20° F to +400° F (-7° C to +204° C).

• Consult factory for other pressures & temps.

• 4-way roller assembly.

• Constant Tension is available – consult factory.

• 304 stainless steel construction.


Applications:

• Lubrication

• Potable Water

• Chemical Transfer

• Washdown

• Corrosive Environments

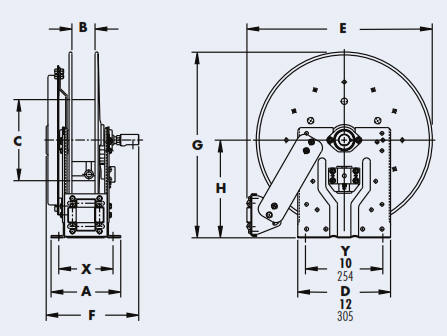

Stainless Steel Hose Reel N700 Drawing

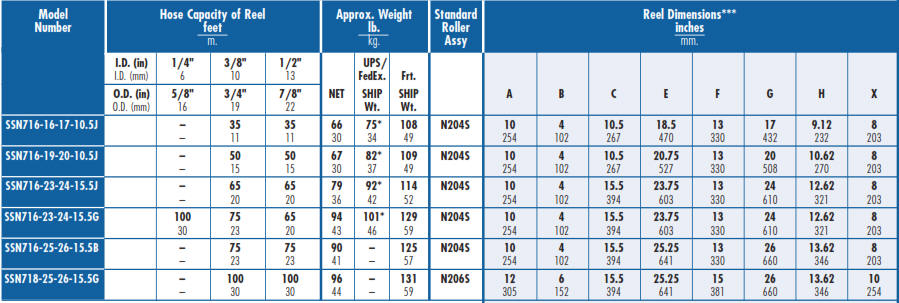

N700 Stainless Steel Hose Reel Chart

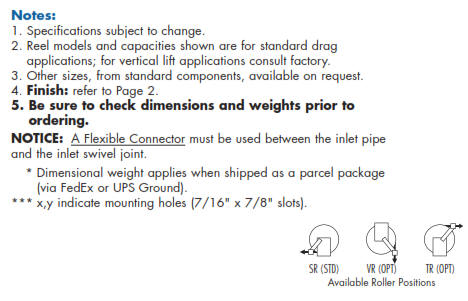

N700 Stainless Steel Hose Reel - Notes
