Hannay Reels

Hannay Stainless Hose Reel

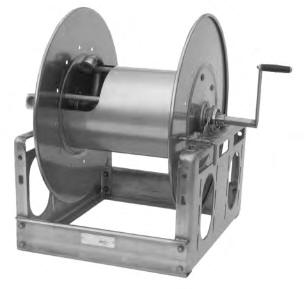

Series 3000 Stainless Steel Hose Reel

Series SS3000 Stainless Steel Hose Reel
Series SS3000 Stainless Steel Reel
To Handle 3/4 or 1 Inch ID Hose
Up to 1000 psi and 400 Degrees F
Manual Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



• Economical manual rewind reels for long lengths of hose.

• Choose disc rewind or removable direct crank rewind.

• Supplied with spring-actuated pin lock.

• Standard inlet 90° stainless steel ball bearing swivel joint 1" female NPT threads.

• Standard outlet 1" female NPT thread.

• Rollers and roller mounting brackets are accessory items.  Specify roller position.

• Pressures to 1000 psi (69 bar)

• Temperatures from +20° F to +400° F (-7° C to +204° C).

• Consult factory for other pressures & temps.

• Consult factory for power reels for 1" hose.

• 304 stainless steel construction.


Applications:

• Marine/Corrosive Environments

• Washdown

• Fire Protection

• Chemical/Food Transfer

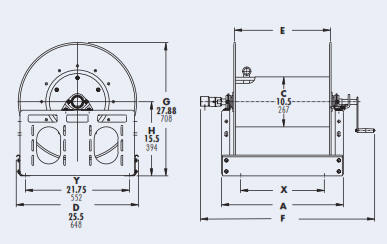

SS3000 Stainless Steel Hose Reel Drawing

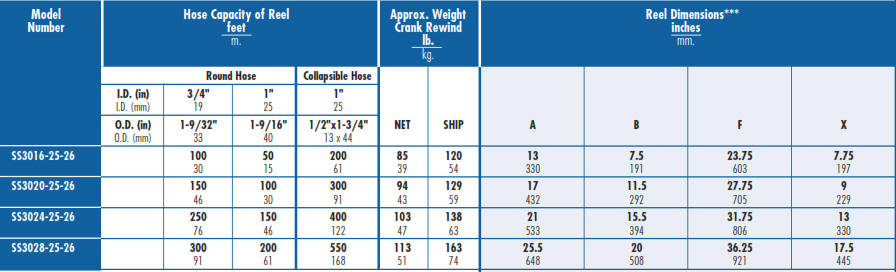

SS3000 Stainless Steel Hose Reel - Chart

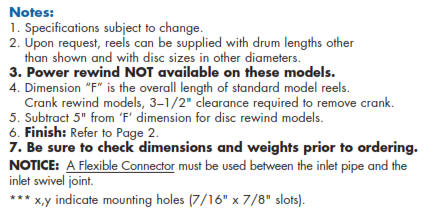

SS3000 Stainless Steel Hose Reel - Notes
