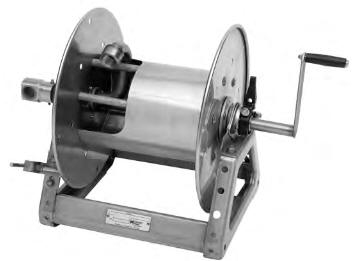

• Lightweight, compact reels designed for long lengths of hose.

• Direct crank rewind is removable.

• Cam-lock brake, spring actuated pin lock.

• Standard inlet 90° stainless steel ball bearing swivel joint 1" female NPT threads.

• Standard outlet 1" female NPT threads.

• Rollers and roller mounting brackets are accessory items.  Specify roller position.

• Pressures to 1000 psi (69 bar).

• Temperatures from +20° F to +400° F (-7° C to +204° C).

• Consult factory for other pressures & temps.

• 304 stainless steel construction.

• Food Processing

• Bottling Plants

• Fire Protection

• Water Supply
