Specially Designed for Pressure Wash Professionals

• PW Series quick mount

• Pressure rating up to 4000 psi.

• 12 and 16 gauge steel.

• Black powder coat finish.

• Adjustable split bearing brake assembly.

• Dual side bearing support.

• Flow rate of over 12 gpm @ 15 fps.

• Captive (4 sided) hose guide roller assembly.

• Universal mounting pattern (2.75" x 5") optional mounting kits.

Optional Mounting Kits & Accessories

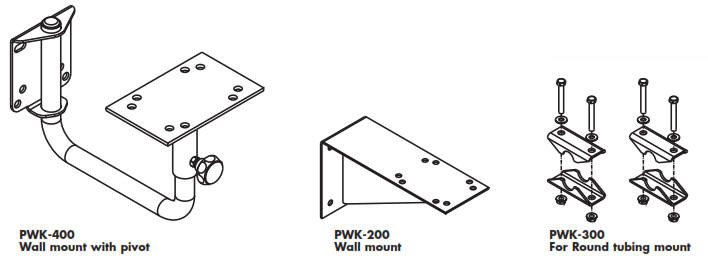

PWK-400 – For wall mounting with the ability to pivot the reel.

Includes pivoting platform, knob, and mounting hardware.

(Mounting hole pattern: 2.75" x 2.75").

PWK-300 – For mounting to 1" round tubing.

PWK-301 – For mounting to 1-1/4" round tubing.

PWK-302 – For mounting to 1" square tubing.

PWK-303 – For mounting to 1-1/4" square tubing.

PWK-200 – For rigid (non-pivoting) wall mounting.

PWK-150 – For base (floor) mounting with the ability to pivot the reel.

Includes pivoting platform, knob, and mounting hardware.

PWK-400/PWK-300 Combination Kit – For mounting to

1" round tubing providing the ability to still pivot the reel.

PWK-400/PWK-301 Combination Kit – For mounting to

1-1/4" round tubing providing the ability to still pivot the reel.
