Hannay Reels

Hannay Pressure Washing Hose Reels

Series 1800 Pressure Washing Hose Reel

series 1800 pressure washing hose reel

Series 1800 Pressure Wash Reel

To Handle 5/8 or 3/4 Inch ID Hose

Pressure up to 1000 psi

Manual or Power Rewind Reels



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



Features:

• Lightweight compact reels designed for long lengths of hose in manual and power rewind.

• Direct crank rewind is permanently attached.

• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.

• Direct crank rewind, cam-lock drag brake, spring actuated pin lock.

• Optional Rollers: Specify roller position when ordering.

• Standard inlet 90° ball bearing swivel joint 1" female NPT threads.

• Standard outlet 3/4" female NPT threads.

• Pressures to 1000 psi (69 bar).

• Temperatures from -40° F to +250° F (-40° C to +121° C).

• Optional hose guide available, see page 14.

• Consult PM&I for other pressures & temps.



For:

• Air Compressors

• Washdown

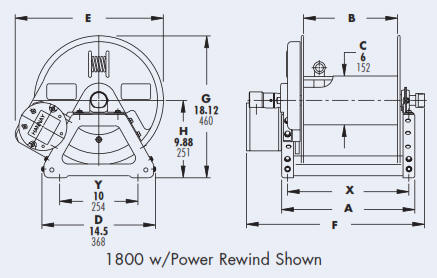

Series 1800 Pressure Washing Hose Reel Drawing

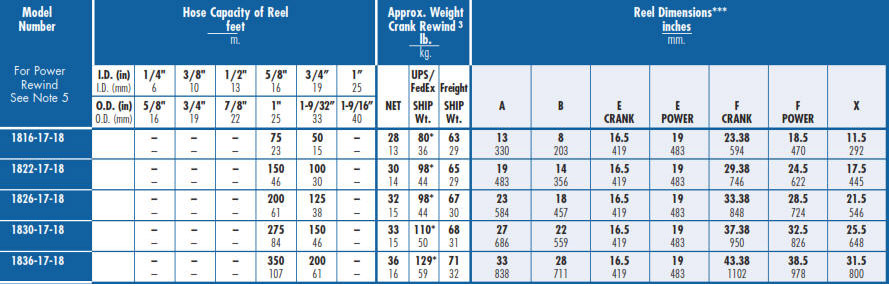

Series 1800 Pressure Washing Hose Reel Chart



Series 1500, 1800, 4000 Pressure Washing Hose Reel Notes
