Hannay Reels

Hannay Pressure Washing Hose Reels

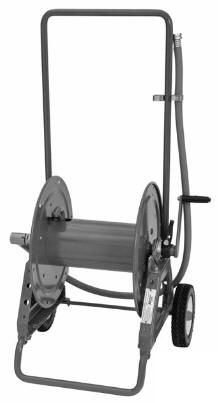

Series 1100 Portable Pressure Washing Reel

Series 1100 Portable Pressure Wash Hose Reel
Series 1100 Portable Pressure Wash Reel
To Handle 3/8 through 5/8 Inch ID Hose
Pressure up to 3000 psi
Manual Rewind



Information Required to Quote Hose or Cable Reels



Purchase ONLINE Select Stock Hose and Cable Reels



Hose and Line Reel Color Choices



• Continuous flow reels with swivel joint inlet, fluid hub, outlet riser.

• Comes with cam-lock brake.

• Direct crank rewind.

• One-piece foot, rubber tires and removable steel handlebar.

• Permanently attached crank.

• Standard inlet 90° ball bearing swivel joint 1/2" female NPT threads.

• Standard outlet is 1/2" female NPT threads.

• Pressures to 3000 psi (207 bar).

• Temperatures from +20° F to +400° F (-7° C to +204° C).

• Optional GH Prefix to model # (e.g. GH1100) includes garden hose thread on outlet, stainless steel axle-hub, 5' lead-in hose, and hose end clips.

• Optional pneumatic tires available (prefix model # with AT).

• Stainless steel construction (and internals) available – consult PM&I.

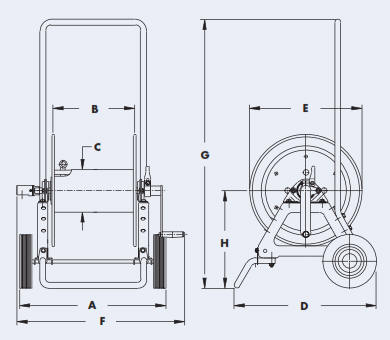

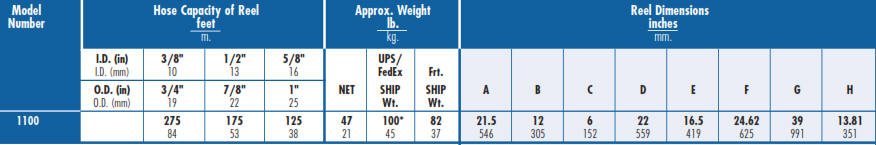

Series 1100 Portable Pressure Washing Hose Reel

Series 1100 Portable Pressure Washing Hose Reel

Series 1100 Portable Pressure Washing Hose Reel
