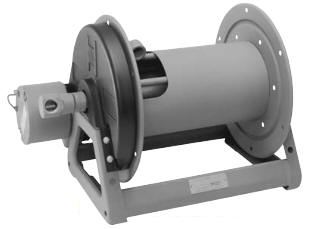

• Lightweight compact reels designed for long lengths of hose in manual and power rewind.

• Direct crank rewind is permanently attached.

• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.

• Direct crank rewind, cam-lock drag brake, spring actuated pin lock.

• Optional Rollers: Specify roller position when ordering.

• Direct crank rewind is removable.

• Standard inlet 90° ball bearing swivel joint 1" female NPT threads.

• Standard outlet 1" female NPT threads.

• Pressures to 1000 psi (69 bar).

• Temperatures from -60° F to +250° F (-51° C to +121° C).

• Consult PM&I for other pressures & temps.

• Comet brake is standard on power rewind reels.
