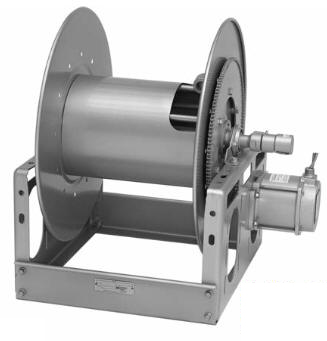

To handle single 1/2" through 1" I.D. hose.

• Heavy-duty reel for longer lengths of hose.

• Choose Gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic or compressed air motor.

• Crank rewind reels supplied with pinion brake, power rewind reels with a comet brake.

• Standard inlet a 90° ball bearing swivel joint 1" female NPT threads.

• Standard outlet 1" female NPT threads.

• Standard inlet, outlet riser and hub assembly are steel.

Optional bronze or aluminum swivel joint and stainless steel hub assembly and riser, are available.

• Optional Rollers may be purchased.

• Pressures to 1000 psi (69 bar).

• Temperatures from -60° F to +250° F (-51° C to +121° C).

• Consult factory for other pressures & temps.

• Chainguard available upon request, must be specified.
