Braden Winch CH640 Series

CH640 Series Construction Hoist
Hydraulic Winch Hydraulic Hoist

The CH165 Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch CH640A Sales Flyer

Braden Winch CH640A Series Materials List

Braden Winch CH640A Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Multi-stage planetary reduction

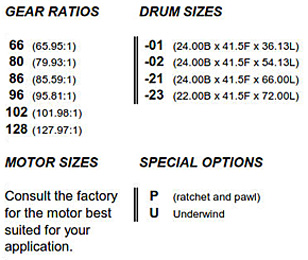

Options:
Gear Ratios
Hydraulic Motors (Gear, Vain, Piston)

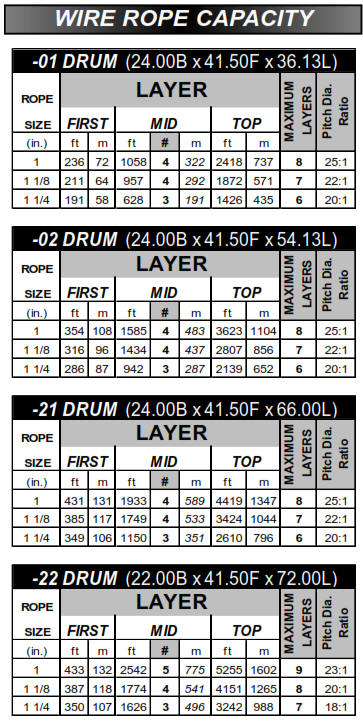

Drum Sizes
Mounting Configurations
Free Fall Hydraulic Winch - Hoist
Controlled Free Fall Hydraulic Winch - Hoist
   Ratchet and Pawl

Model Rated Capacity Weight
CH640A 64,000 lbs (29,095 kg) 6,500 lbs (2,950 kg)

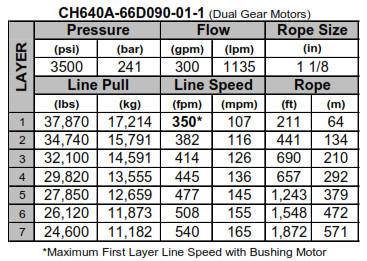

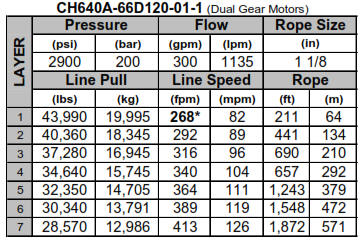

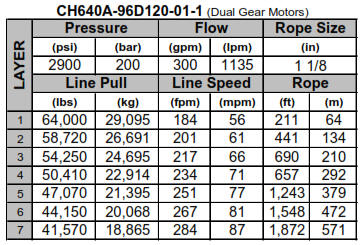

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

Braden Winch CH640 Series  Braden Winch CH640 Series

Braden Winch CH640 Series  Braden Winch CH640 Series

Braden Winch CH640 Series

Braden Winch CH640 Series
