Heavy Duty Hand Winch - Manual Winch

Up To 15 Tons Capacity

With or Without Brake

PM&I supplies heavy duty hand winches and manual winches with pulling capacities from 500 lbs. up to 15 tons (30,000 lbs.), in worm gear and spur gear designs with hand crank or hand wheel operation, with or without brake.

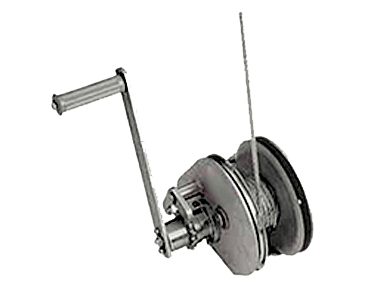

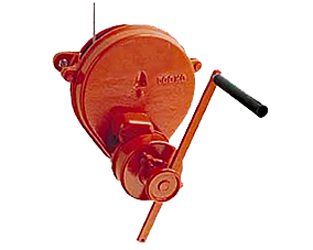

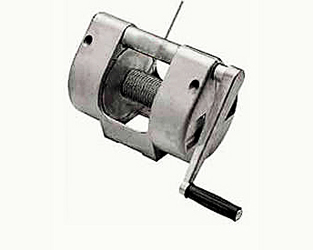

The catalog includes general capacity series (W Series worm gear, 500-3,000 lbs.; AM and BM Series spur gear, 1/2 and 1 US ton; LM and HM Series spur gear, 2 and 5 US ton), wall and console mount series (PGW worm gear wall mount, 550-11,000 lbs. line pull; PGS wall mount, 275-4,400 lbs.; PCMG galvanized console mount, 330-3,000 lbs.; PWMA aluminum wall mount, 175 or 275 lbs.; PCMA aluminum, 440-1,760 lbs.; PWSG worm gear, 550-1,650 lbs.; and PCMS stainless steel console mount, 1,450 or 2,200 lbs.), heavy duty and specialty series (BW Series spur gear, 20-90 ton holding power, 10 and 15 US ton capacity; PGWF split drum wall mount, 275-11,000 lbs.), and free spooling and free fall series (PCFF controlled free fall, 660-3,300 lbs.; PCMC aluminum free spooling, 1,600 or 2,400 lbs.).

Depending on the winch, brakes are available in various forms — as a worm gear hand winch, a hand winch with brake, a safety brake handle, or a band brake — and an epoxy top coat option is available for greater durability in continuous outdoor use. Materials include stainless steel, galvanized, aluminum, and painted construction, and the line also includes small hand winches and boat winches, split drum, wall mount, free spooling, controlled free fall, and manual barge hand winch configurations.

Whether you're specifying a small boat winch, a heavy duty barge or industrial winch, or a stainless or aluminum hand winch for corrosive environments, PM&I's hand winch and hoist catalog is backed by manufacturing and distribution experience serving marine, industrial, and defense customers worldwide since 1985.

Browse the full hand winch and hoist catalog above, or contact PM&I directly for engineering support and custom fabrication.
