Braden Winch CH210 Series

CH210 Series Construction Hoist
Braden Winch

The CH165 Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch CH210A Sales Flyer

Braden Winch CH210A Series Materials List

Braden Winch CH210A CH230A Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Multi-stage planetary reduction

Options:
Gear Ratios
Hydraulic Motors (Gear, Vain, Piston)
Drum Sizes
Mounting Configurations
Free Fall Hydraulic Winch - Hoist
Controlled Free Fall Hydraulic Winch - Hoist
   Ratchet and Pawl

Model Rated Capacity Weight
CH210A 21,000 lbs (9,525 kg) 1,220 lbs (553 kg)

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

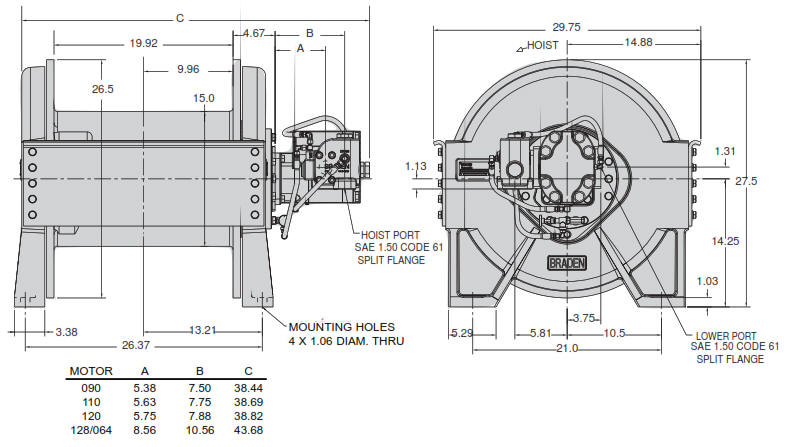

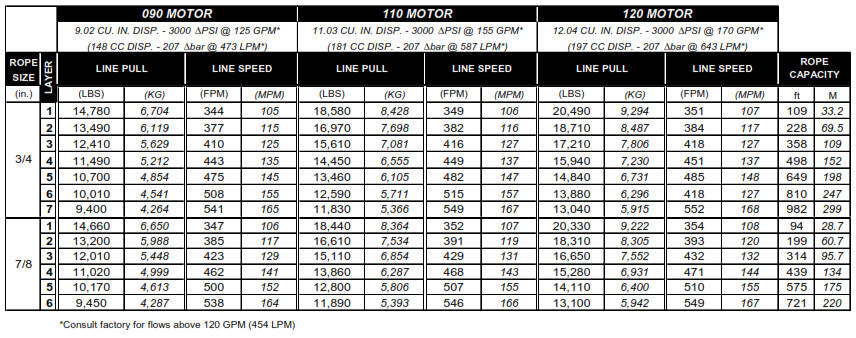

CH210A-36120-01
Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)
1
 20330 9241 354 108 94 29
2
 18310 8323 393 120 199 61
3
 16650 7568 432 132 314 96
4
 15280 6945 471 144 439 134
5
 14110 6414 511 156 575 175
6
 13100 5955 550 168 721 220
  The last legal layer per ANSI is 6 D/d=18.1:1
