Braden Winch CH230 Series

CH230 Series Construction Hoist
Braden Winch

The CH165 Series planetary winch is a high performance product designed to provide many years of service.

Braden Winch CH230B Sales Flyer

Braden Winch CH165 CH230B Series Materials List

Braden Winch CH165A CH175B CH230B Install, Maintenance & Service Manual

Purchase ONLINE Selected Braden Winch from Stock


Information Needed to Quote Hydraulic Hoist and Hydraulic Winches



How to Size a Winch or Hoist

Braden Winch Serial Number Location

Standard Features:
Multi-disc Brake - Spring applied and hydraulically released
Anti-friction bearings for maximum efficiency
Multi-stage planetary reduction

Options:
Gear Ratios
Hydraulic Motors (Gear, Vain, Piston)
Drum Sizes
Mounting Configurations
Free Fall Hydraulic Winch - Hoist
Controlled Free Fall Hydraulic Winch - Hoist
   Ratchet and Pawl

Model Rated Capacity Weight
CH230B 23,000 lbs (10,430 kg) 955 lbs (433 kg)

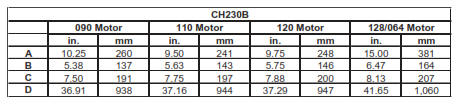

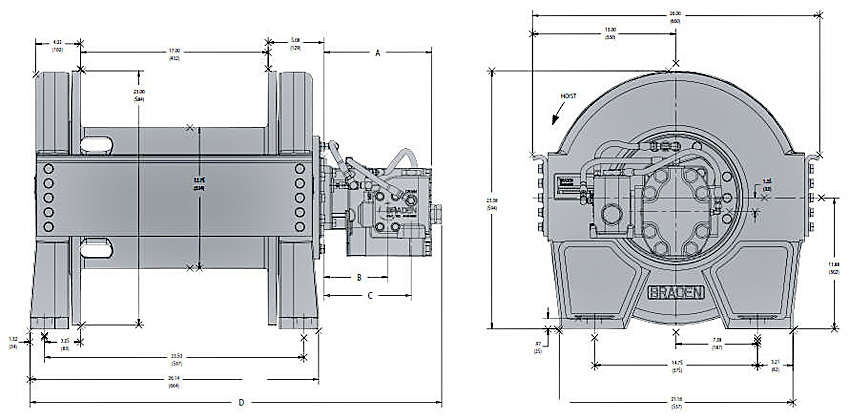

Below models represent only a small number of gearbox, motor and drum size configurations.
Contact PM&I for complete product information including sizing your new winch: info@pacificmarine.net

Performance and dimensions may have changed.  Be sure to review prior to purchase.

Drum
Designation		 Drum Size Max. Capacity
Estimate
-01 (12.75B x 22.75F x 17.00L) 3/4 in - 614 ft
19 mm - 187 m

CH230B-35120-01

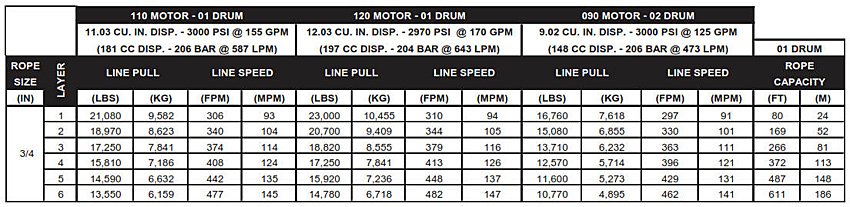

Layer Line Pull Line Speed Rope Capacity
  (lbs) (kg) (fpm) (mpm) (ft) (m)
1
 23000 10455 310 94 80 24
2
 20700 9409 344 105 169 52
3
 18820 8555 379 116 266 81
4
 17250 7841 413 126 372 113
5
 15920 7236 448 137 487 148
6
 14780 6718 482 147 611 186
  The last legal layer per ANSI is 6 D/d=18:1
