Heavy Duty Hand Winch - Manual Winch

Self Locking Hand Winch

PDL-C Series

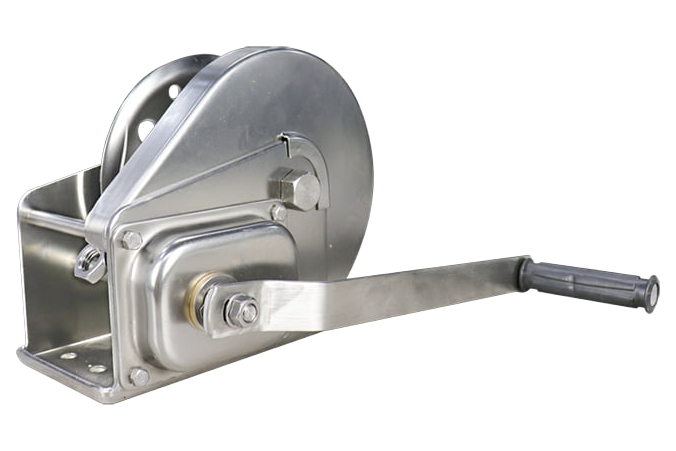

Heavy Duty Hand Winch - Self Locking Hand Winch: PDL Series
800 to 2600 lbs. line pull capacity

How to Size a Winch or Hoist

Information Required to Quote Hand Winches and Hoists

Drawing of Self Locking PDL-C Series Hand Winch

Corrosion Resistant: Powder-coated Steel or 304 Stainless Steel.

Self-Locking Brake: Self-locking brake system firmly holds load and prevents reverse slipping during operation.

Low-Friction Gearing: Low-friction transmission gears reduce cranking resistance for easier manual operation.

Heavy Duty Hand Crank: Provides reliable operation for demanding pulling and lifting applications.

Stock Units are available in Blue Powder-coated Steel.

Model: Rated Capacity
(LBS)		 Cable Diameter
(Not Included)		 Webbing Width
(Not Included)		 Drum Capacity
(Meters)		 Gear Ratio Net Weight (kg)
PDL-C8 800 4mm 50mm 6 3.2:1 2.25
PDL-C12 1200 4mm 50mm 8 4.2:1 3.80
PDL-C16 1600 5mm 50mm 10 4.0:1 5.20
PDL-C18 1800 5mm 50mm 10 5.0:1 8.10
PDL-C26 2600 5mm 50mm 10 10.0:1 10.30



Model: Dimensions (mm)
A B C D E F G H
PDL-C8 145 120 82 247 51 165 108 32
PDL-C12 182 156 88 288 51 204 109 32
PDL-C16 195 174 93 292 51 204 109 32
PDL-C18 244 200 108 292 60 312 109 32
PDL-C26 292 214 128 318 60 312 109 32
