Ship Anchor Chain Windlass

Single and Double with Optional Configurations

Ship Anchor Chain Windlass

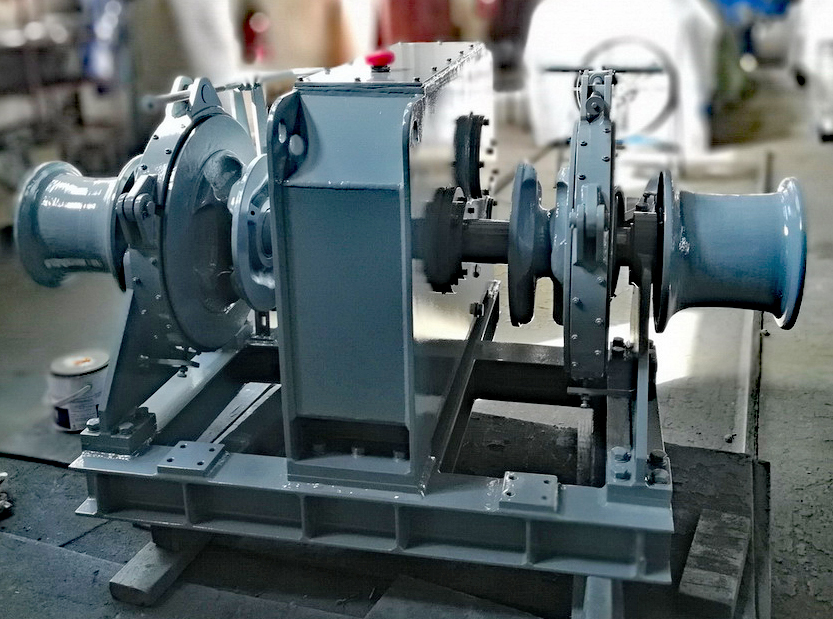

Shown above left: Gypsy (Chain Wheel), Warping Drum, Warping Head

1. Electric or Hydraulic Power?

1A.  If Hydraulic: Is the Hydraulic Power Pack Required?

1B. If Electric: What are the volts, hz and phase of the power?

2.  Pull Capacity (Lbs, KG, Tons, Metric Tons)? (or Anchor weight and type)

3.  Chain Size and Grade (U2, U3, etc)?

4. If Warping Drum: Line, Type, Diameter and Length?

5.  If Warping Head: Line Type and Size?

6.  Skid Mounted or Deck Mounted?

7.  Classification Society: ABS, GL/DNV, BV, LR, CCS, Etc?

PM&I supplies ship anchor chain windlasses in single and double configurations, electric or hydraulic power, engineered and sized to vessel tonnage, chain size, and class society requirements.

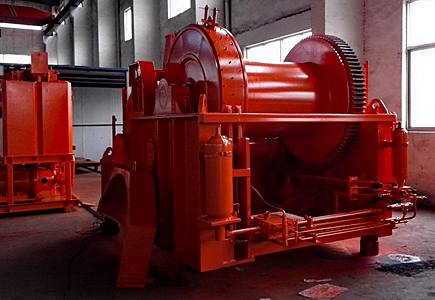

The catalog includes single and double windlasses (with gypsy/chain wheel, warping drum, and warping head configurations, in electric or hydraulic power), examples ranging from a 10 metric ton anchor chain windlass with rope drum to a 40 metric ton anchor handling winch, and windlasses sized for chain up to 38mm for double configurations. PM&I can size anchor, chain, and windlass based on vessel tonnage and class society requirements, including ABS, GL/DNV, BV, LR, and CCS.

Because windlasses are specified to a vessel's exact requirements, PM&I asks for power type (electric or hydraulic), pull capacity or anchor weight and type, chain size and grade, warping drum or head details, skid or deck mounting, and classification society when quoting a windlass.

Whether you're specifying a windlass for a new vessel or replacing an existing anchor chain windlass, PM&I's ship anchor chain windlass catalog is backed by manufacturing and distribution experience serving marine, industrial, and defense customers worldwide since 1985.

Browse the full ship anchor chain windlass catalog above, or contact PM&I directly for engineering support and custom fabrication.
