PYTG Low Headroom I Beam Chain Hoist

1 to 10 Metric Tons Capacity

3 Meter Standard Lift

Low Headroom I Beam Hoist

PYTG Low Headroom I Beam Hoist

1 to 10 Metric Tons Capacity

3 Meter Standard Lift (Customization Possible)


Made to the Standard: EN13157


The PYTG Low Headroom hoist is the ideal solution to meet your toughest clearance
requirements for special applications. This hoist is custom built to fit long or short reach
framing. Using special trolley frame with upper sheave and offset hoist machinery,
lifting heights can be optimized.


Allows for maximum hook height in tight clearance applications.


Easy Operation

● Capacity range from 1 ton to 20 ton.
● Ultra-low headroom design for maximum hook travel.
● Extremely low headroom for use where space is limited.
● Efficient hoist drive train minimizes effort required to operate.
● Trolley wheels fit on both tapered and flat flanged beams.
● Maintenance-free sealed trolley ball bearings are lubed life and offer smooth
movement with low friction and long life.
● 20’standard lift. Longer lengths available Dependability.


● All-steel construction for hoist durability.
● Reliable hoist braking with double enclosed brake cover that keeps out rain, dust and dirt.
● Grade 80 heat-treated manganese alloy load chain resists abrasion and wear.
● Cast trolley wheels and steel side plates for heavy-duty applications.


● Industrial lifting applications where space is limited.
● Demanding environments.

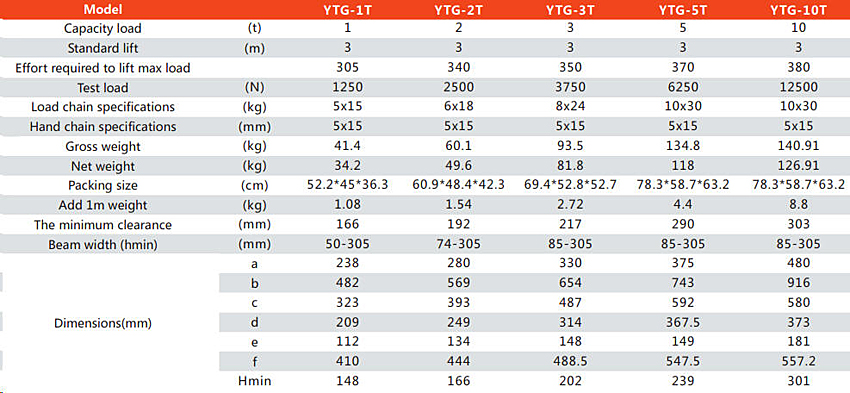

Low Headroom I Beam Chain Hoist

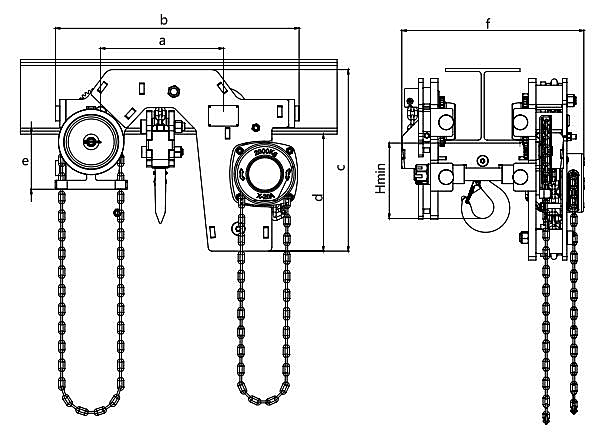

Low Headroom I Beam Chain Hoist
