● Clutch: As emergency overload protection, clutch will function and motor will slip with abnormal load.
● Inverse phase sequence protection: Special electrical installation which controls the circuit breaker

in the case of a wiring error in the power supply.
● Weight Limit Switch: Does not allow unit to operate if overloaded.
● Magnetic braking device: Brake in case of the power failure.
● Chain: Japan FEC80 chain ultra heat-treated steel alloy chain.
● Emergency stop button cuts off the motor circuit.
● Control voltage is 12V with Optional 24V, 36V, 48V and 110V.
● Wireless remote control, and overheat protector optional.

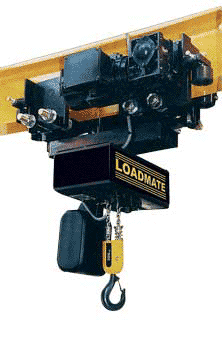

Optional I Beam Electric Trolley

Use Trolley of Same Capacity as Hoist

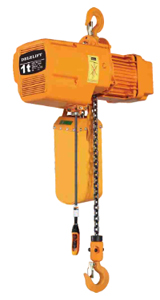

PDLED Electric Chain Hoists

Type	Capacity(T)	Standard* Lifting Height(m)	Lifting Speed (m/min)	Lifting Motor**
Type	Capacity(T)	Standard* Lifting Height(m)	Lifting Speed (m/min)	Power(Kw)	Rotation Speed (r/min)	Phases	Voltage (V)	Frequency(Hz/S)
PDLED-00501	0.5	3	6.8	0.75	1440	1	220V	60
PDLED-0101	1	3	6.6	1.5	1440	1	220V	60
PDLED-0102	1	3	3.4	0.75	1440	1	220V	60
PDLED-01501	1.5	3	8.8	3	1440	1	220V	60
PDLED-0201	2	3	6.6	3	1440	1	220V	60
PDLED-0202	2	3	3.3	1.5	1440	1	220V	60
PDLED-02501	2.5	3	5.4	3	1440	1	220V	60
PDLED-0301	3	3	5.4	3	1440	1	220V	60
PDLED-0302	3	3	4.4	3	1440	1	220V	60
PDLED-0303	3	3	2.2	1.5	1440	1	220V	60
PDLED-0502	5	3	2.7	3	1440	1	220V	60

* Standard Lifting Height is 3 Meters / 9.84 Feet. Other Options Can Be Ordered * Standard Pendant Control Length is 3 Meters / 9.84 Feet. Other Options Can Be Ordered ** Other Power Supply Can Be Ordered

PDLED Electric Chain Hoists
