Ship Anchor Chain Windlass

Single or Double with Capstan Head(s)

Single or Double

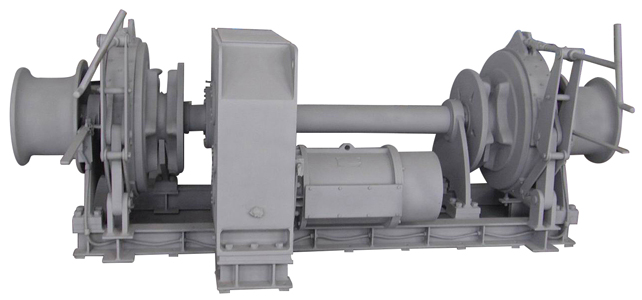

Above Left: Double with Double Capstan Heads - Electric Power

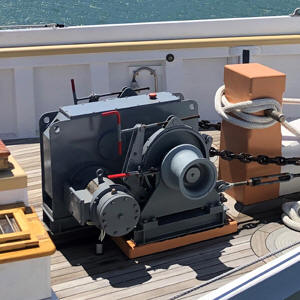

Above Right: Single with Capstan Head - Hydraulic Power

Information Required for Quotations:

If you prefer, we can size anchor, chain and windlass given vessel tonnage and class society.

1. Electric or Hydraulic Power?

1A. If Hydraulic: Is the Hydraulic Power Pack Required?

1B. If Electric: What are the volts, hz and phase of the power?

2. Pull Capacity (Lbs, KG, Tons, Metric Tons)? (or Anchor Type and Weight)

3. Chain Size and Grade (U2, U3, etc)?

4. If Warping Drum: Line, Type, Diameter and Length?

5. If Warping Head: Line Type and Size?

6. Skid Mounted or Deck Mounted?

7. Classification Society: ABS, GL/DNV, BV, LR, CCS, Etc?

Other Product Configuration

Double Ship Anchor Chain Windless, Electric for 38mm Chain, with Capstan Heads
