Product certified to ISO 14409 by BV or CCS if desired

Salvage air bags are the most commonly used tool for recovering submerged objects. These airbags are small in size while deflated and thus they can be easily transported and deployed. We can provide the product needed for the exact ton of force required based on the clients requirements.

Our salvage airbags have many applications and can be used in shipwreck salvaging, floating bridge and dock construction. They are also being used as a temporary marine transportation device.

Specification	Range
Diameter	From 0.6m to 2.8M
Effective Length	From 5.0m to 28.0M
Total Length	From 7.0m to 31.0M
Standard Number of Layers	Usually 3-12 layers

Marine Airbags - Ship Launching Airbags

Marine Salvage Airbags

Working Pressures:
(D = Diameter in Meters. Layers = Rubber Layers)

Type	D=0.8m	D=1.0m	D=1.2m	D=1.5m	D=1.8m	D=2.0m
3 layers	0.13MPA	0.10MPA	0.09MPA	0.07MPA	0.06MPA	0.05MPA
4 layers	0.17MPA	0.13MPA	0.11MPA	0.09MPA	0.08MPA	0.07MPA
5 layers	0.21MPA	0.17MPA	0.14MPA	0.11MPA	0.09MPA	0.08MPA
6 layers	0.25MPA	0.20MPA	0.17MPA	0.13MPA	0.11MPA	0.10MPA
7 layers	0.29MPA	0.23MPA	0.20MPA	0.15MPA	0.13MPA	0.12MPA
8 layers	0.33MPA	0.26MPA	0.23MPA	0.17MPA	0.15MPA	0.14MPA
9 layers	0.37MPA	0.29MPA	0.26MPA	0.19MPA	0.17MPA	0.16MPA
10 layers	0.41MPA	0.32MPA	0.29MPA	0.21MPA	0.19MPA	0.18MPA

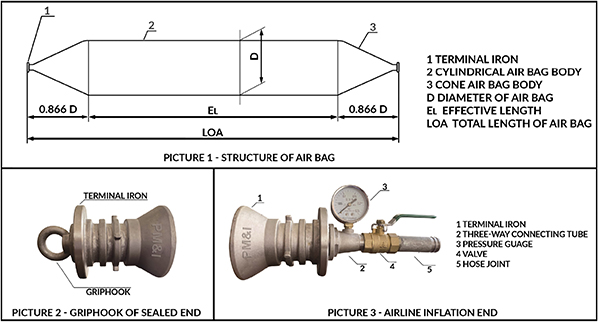

Inflation Manifold

Airbag End Fittings

Inflation Hose
