Marine Airbags - Ship Launching Airbags

Marine Salvage Airbags & Marine Airbags for Flotation

Marine Airbags - Ship Launching Airbags



Information Needed To Quote Marine Airbags



Marine Airbags Ship Launching Video



Marine Airbags Ship Haul Out Video



Marine Airbags Product Catalog



Product certified to ISO 14409 by BV or CCS if desired



Air Bag Applications:

Ship Launching Airbags and Dry Docking Airbags

Sunken Vessel Salvage Airbags

Construction Use - Floating Bridge and Dock Airbags

Flotation Support Airbags

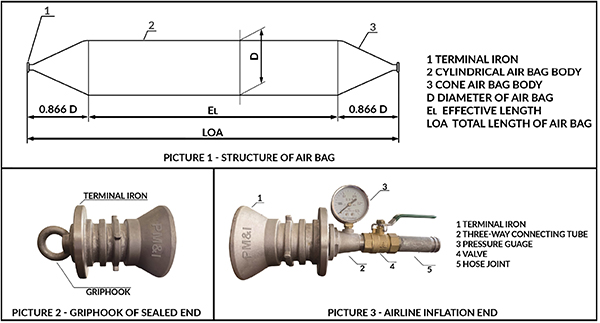

Specification

Range

Diameter

From 0.6m to 2.8M

Effective Length

 From 5.0m to 28.0M

Total Length

From 7.0m to 31.0M

Standard Number of Layers

Usually 3-12 layers



Marine Airbags - Ship Launching Airbags


Marine Salvage Airbags - Marine Flotation Airbags



Working Pressures:

(D = Diameter in Meters.  Layers = Rubber Layers)



Type

D=0.8m

D=1.0m

D=1.2m

 D=1.5m

D=1.8m

D=2.0m

3 layers

0.13MPA

0.10MPA

0.09MPA

0.07MPA

 0.06MPA

0.05MPA

4 layers

0.17MPA

 0.13MPA

0.11MPA

0.09MPA

0.08MPA

0.07MPA

5 layers

0.21MPA

0.17MPA

0.14MPA

0.11MPA

0.09MPA

0.08MPA

6 layers

0.25MPA

0.20MPA

0.17MPA

0.13MPA

0.11MPA

0.10MPA

7 layers

0.29MPA

0.23MPA

0.20MPA

0.15MPA

0.13MPA

0.12MPA

8 layers

0.33MPA

0.26MPA

 0.23MPA

0.17MPA

0.15MPA

0.14MPA

9 layers 0.37MPA 0.29MPA 0.26MPA 0.19MPA 0.17MPA 0.16MPA
10 layers 0.41MPA 0.32MPA 0.29MPA 0.21MPA 0.19MPA 0.18MPA



Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Inflation Manifold

Airbag End Fittings

Inflation Hose
