Marine Airbags - Ship Launching Airbags

Flotation Airbags, Marine Salvage Airbags, Ship Docking Airbags

Information Needed To Quote Marine Airbags


Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Ship Docking Marine Airbags

Ship Launching Marine Airbags

Salvage Marine Airbags

DWT of 60,000 Tons and More

DWT of 60,000 Tons and More

Up to 25 Meters of Water Depth





Up to .25 Mpa Working Pressure



Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

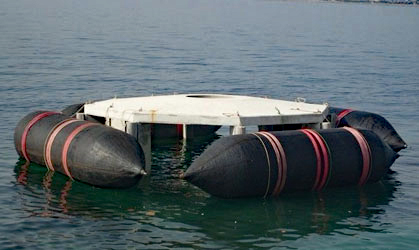

Flotation Marine Airbags

Marine Airbags for Construction Sites



Marine Airbags Ship Launching Airbags Video



Marine Airbags Ship Haul Out Video


   Marine Airbag Product Catalog



Product certified to ISO 14409 by BV or CCS if desired



Air Bag Applications:



Ship Launching and Dry Docking

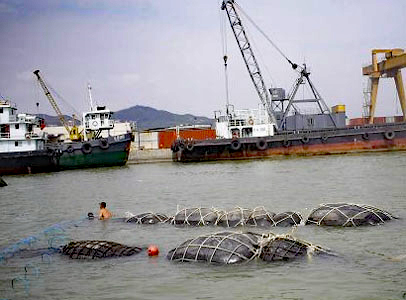

Sunken Vessel Salvage

Construction Use - Floating Bridge and Dock

Flotation Support



Air Bag Inflation:



Marine Airbags - Ship Launching Airbags



Valve, Manometer and Standard Air Hose Fitting Provided

You must provide compressor and air hose

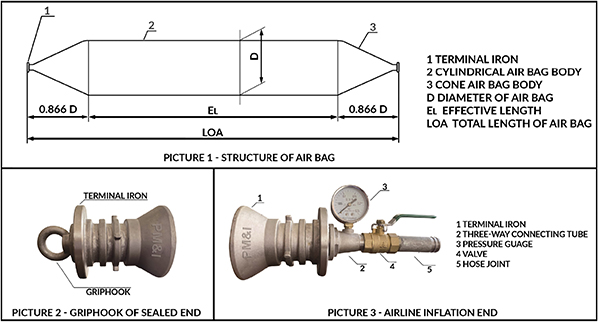

Air Bag Construction:



Special Synthetic Tire-Cord Layer:

Our marine airbag are made with special synthetic tire-cord layers which have a much better performance than air bags

made with PVC coated fabrics



High-Pressure Design:

Our salvage airbags have a maximum working pressure of 0.25Mpa.

This means that they can be used in up to 25 meters of water depth.



Holistic Screw Type Enlacing Salvage Airbags:

Our "Vessel Salvage Airbags" are a totally enclosed tube with cone ends. They are manufactured using Holistic Screw

technology. This method of manufacture ensures that there aren't any welded seams making for a stronger product than RF welded salvage airbags.



Equipped With Accessories

Our Salvage-Bags are equipped with nylon straps and shackles with 6:1 safety factor.



Specification

Range

Diameter

From 0.6m to 2.8M

Effective Length

 From 5.0m to 28.0M

Total Length

From 7.0m to 31.0M

Standard Number of Layers

Usually 3-12 layers



Marine Airbags - Ship Launching Airbags



Working Pressures:

(D = Diameter in Meters.  Layers = Rubber Layers)



Type

D=0.8m

D=1.0m

D=1.2m

 D=1.5m

D=1.8m

D=2.0m

3 layers

0.13MPA

0.10MPA

0.09MPA

0.07MPA

 0.06MPA

0.05MPA

4 layers

0.17MPA

 0.13MPA

0.11MPA

0.09MPA

0.08MPA

0.07MPA

5 layers

0.21MPA

0.17MPA

0.14MPA

0.11MPA

0.09MPA

0.08MPA

6 layers

0.25MPA

0.20MPA

0.17MPA

0.13MPA

0.11MPA

0.10MPA

7 layers

0.29MPA

0.23MPA

0.20MPA

0.15MPA

0.13MPA

0.12MPA

8 layers

0.33MPA

0.26MPA

 0.23MPA

0.17MPA

0.15MPA

0.14MPA

9 layers 0.37MPA 0.29MPA 0.26MPA 0.19MPA 0.17MPA 0.16MPA
10 layers 0.41MPA 0.32MPA 0.29MPA 0.21MPA 0.19MPA 0.18MPA



Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Inflation Manifold

Airbag End Fittings

Inflation Hose



This catalog page includes:

marine air bags, ship launching airbags, flotation air bags, construction air bags, marine salvage air bags, ship drydocking air bags
