Marine Airbags - Ship Launching Airbags

Marine Airbags For Construction Sites

Marine Airbags - Ship Launching Airbags

Information Needed To Quote Marine Airbags

Marine Airbags Ship Launching Video

Marine Airbags Ship Haul Out Video

Marine Airbags Product Catalog

Product certified to ISO 14409 by BV or CCS if desired

Air Bag Applications:

Ship Launching and Dry Docking

Sunken Vessel Salvage

Construction Use - Floating Bridge and Dock

Flotation Support

Specification	Range
Diameter	From 0.6m to 2.8M
Effective Length	From 5.0m to 28.0M
Total Length	From 7.0m to 31.0M
Standard Number of Layers	Usually 3-12 layers

Marine Airbags - Ship Launching Airbags

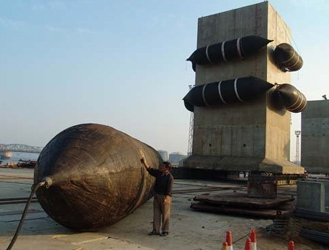

Marine Airbags for Construction Sites

Working Pressures:
(D = Diameter in Meters. Layers = Rubber Layers)

Type	D=0.8m	D=1.0m	D=1.2m	D=1.5m	D=1.8m	D=2.0m
3 layers	0.13MPA	0.10MPA	0.09MPA	0.07MPA	0.06MPA	0.05MPA
4 layers	0.17MPA	0.13MPA	0.11MPA	0.09MPA	0.08MPA	0.07MPA
5 layers	0.21MPA	0.17MPA	0.14MPA	0.11MPA	0.09MPA	0.08MPA
6 layers	0.25MPA	0.20MPA	0.17MPA	0.13MPA	0.11MPA	0.10MPA
7 layers	0.29MPA	0.23MPA	0.20MPA	0.15MPA	0.13MPA	0.12MPA
8 layers	0.33MPA	0.26MPA	0.23MPA	0.17MPA	0.15MPA	0.14MPA
9 layers	0.37MPA	0.29MPA	0.26MPA	0.19MPA	0.17MPA	0.16MPA
10 layers	0.41MPA	0.32MPA	0.29MPA	0.21MPA	0.19MPA	0.18MPA

Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

Marine Airbags - Ship Launching Airbags

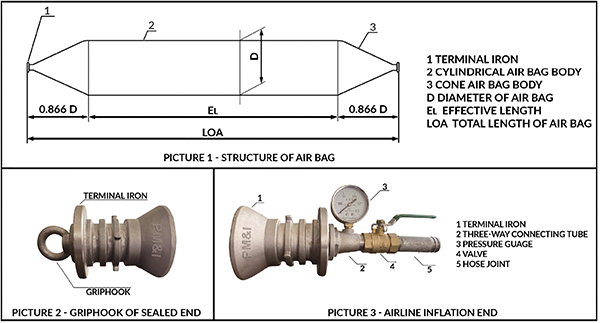

Inflation Manifold

Airbag End Fittings

Inflation Hose
