MyTe Winch

Portable Electric Winch Hoists
MyTe Winch Electric MyTe Winch Electric MyTe Winch Electric
MyTe Winch 100AB MyTe Winch 150AB MyTe Winch AC36B
Portable Winch Hoist Portable Winch Hoist Portable Winch Hoist
Duty Cycle 15 Min / Hour Duty Cycle 15 Min / Hour Duty Cycle 15 Min / Hour
115 VAC (230 Optional) 115 VAC (230 Optional) 115 VAC (230 Optional)
1,000 lbs. Single Line Pull 1,000 lbs. Single Line Pull 3,000 lbs. Single Line Pull
2,000 lbs. Double Line Pull 2,000 lbs. Double Line Pull 6,000 lbs. Double Line Pull
7 1/2 Inch Long Drum 4 1/2 Inch Short Drum 9 1/16 Inch Long Drum

MyTe Winch Electric MyTe Winch Electric MyTe Winch Electric
MyTe Winch DC48-12 MyTe Winch DC48-24 MyTe Winch 10-12
Portable Winch Hoist Portable Winch Hoist Portable Winch Hoist
Duty Cycle 15 Min / Hour Duty Cycle 15 Min / Hour Duty Cycle 15 Min / Hour
12 VDC Power 24 VDC Power 12 VDC Power
3,000 lbs. Single Line Pull 3,000 lbs. Single Line Pull 1,250 lbs. Single Line Pull
6,000 lbs. Double Line Pull 6,000 lbs. Double Line Pull 2,500 lbs. Double Line Pull
9 1/16 Inch Long Drum 9 1/16 Inch Long Drum 9 1/16 Inch Long Drum

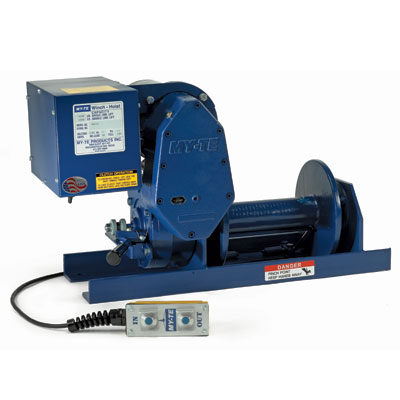

MyTe Winch Electric MyTe Winch Electric MyTe Winch Electric
MyTe Winch 10-24 MyTe Winch 20-12 MyTe Winch 20-24
Portable Winch Hoist Portable Winch Hoist Portable Winch Hoist
 24 Volt Power 12 Volt Power 24 Volt Power
1,250 lbs. Single Line Pull 1,250 lbs. Single Line Pull 1,250 lbs. Single Line Pull
2,500 lbs. Double Line Pull 2,500 lbs. Double Line Pull 2,500 lbs. Double Line Pull
9 1/16 Inch Long Drum 4 1/2 Inch Short Drum 4 1/2 Inch Short Drum



MyTe Winch MyTe Winch 520 MyTe Winch
MyTe Winch 510 MyTe Winch 520 MyTe Winch LD100AB
Constant Speed Portable Constant Speed Portable Electric Loop Drive
Duty Cycle 30 Min / Hour Duty Cycle 30 Min / Hour Duty Cycle 15 Min / Hour
3/4 HP Electric 115, 230 or 230/3PH 1.5 HP Electric 115, 230 or 230/3PH

115 Volt or 208 Volt
1,500 lbs. Single Line Pull 1,500 lbs. Single Line Pull

800 lbs. Line Pull
3,000 lbs. Double Line Pull 3,000 lbs. Double Line Pull

20,000 Lbs Rolling Load Capacity
9 1/16 Inch Long Drum 9 1/16 Inch Long Drum

Double 1/4" Grooved Drums

Purchase ONLINE MyTe Winch Portable Winch Hoist

Information Required to Quote Electric Winch or Hoist

How to Size a Winch or Hoists

Other Related Products

Industrial Marine Capstan Marine Cranes Lifting Spreader Beams and Bars
Marine Capstans of All Types Marine Cranes of All Types Lifting Frames and Bars
Above, Semi Thru and Thru Deck Davit, I Beam, Jib, Etc. Made Per Project Requirements

Rope Fairleads - Swivel Fairlead Block and Sheaves Roller Fairleads
Rope Fairleads Blocks and Sheaves Roller Fairleads
Synthetic Rope and Wire Rope 1, 3, 4 and Multi Roller
