PVA Series Lever Chain Hoists

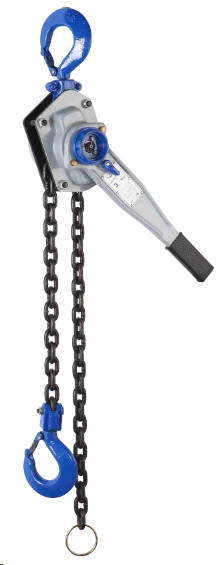

Lever Chain Hoist PVAH Series

.75 to 9 Metric Ton

1.5 Meter Standard Lift

1, 2 or 3 Chain Fall

Make to the Standard: EN13157

● Compact, light and durable.
● Double-pawl brake system designed for safety and reliability.
● Heat treated steel plates, gears and shaft for enhanced strength;

Forged upper, lower hooks with forged steel safety latches; High tensile alloy steel chain.
● Free -wheeling mechanism for quick chain adjustments.
● Weston style automatic load brake with double pawl load reduction.
● 360° rotating handle for use in confined spaces.
● When in neutral position the bottom hook can be freely adjusted when unloaded.
● Safety factor: 4 to 1.
● Fatigue tested at 1.5 times the working load limit for 2000 cycles.
