I Beam Trolley

PDLET Electric Trolley

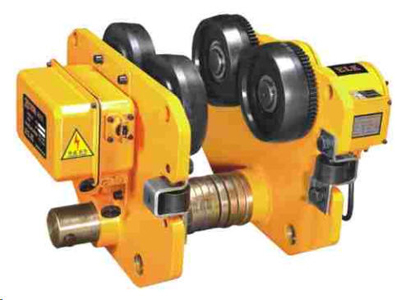

PDLET Electric I Beam Trolley

Electric I Beam Trolley PDLET Series

Electric Powered

0.5 to 10 Metric Tons Capacity

Adjustable to A Range of Beam Sizes

Power Supply As Needed: 50 or 60 hz / 1 or 3 phase / XXX Volts

Product Supplied WITHOUT Low Voltage Pendant Controls

Trolley is Typically Controlled by the Pendant Control Included With The Accompanying Electric Chain Hoist

or Other Chosen Equipment.

Optional / Special Order: Low Voltage Pendant Control and / or Transformer with the Trolley.

In Stock:

PDLET-1: 1 Ton: 21 Meter Per Min Speed

PDLET-2: 2 Ton: 21 Meters Per Min Speed

PDLET-5: 5 Ton: 11 Meters Per Min Speed

PDLET-10: 10 Ton: 11 Meters Per Min Speed

All Have:

220 Volt / 1 Phase / 60 Hz Power

Use Hoist of Same Capacity As Trolley

Model	Capacity(T)	Unit(mm)				Standard Speed 60Hz(m/min)*	Motor(KW)	Minimum Radius of Turn(m)	I-Beam Range(mm)

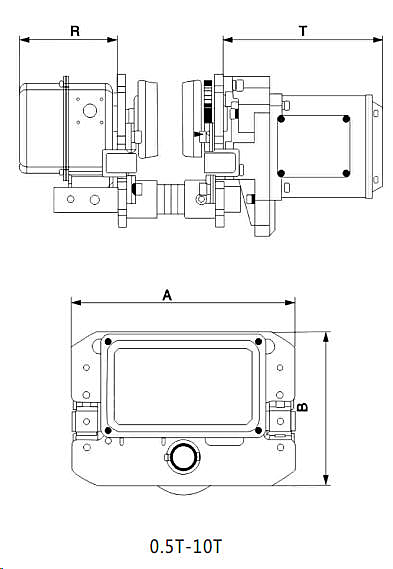

Model	Capacity(T)	A	B	R	T	Standard Speed 60Hz(m/min)*	Motor(KW)	Minimum Radius of Turn(m)	I-Beam Range(mm)
PDLET-0.5	0.5	315	212	142	231	11 or 21	0.4	0.8	58-153
PDLET-01	1	315	212	142	231	11 or 21	0.4	0.8	58-153
PDLET-02	2	325	220	142	231	11 or 21	0.4	0.8	82-178
PDLET-03	3	340	250	142	231	11 or 21	0.75	1	100-178
PDLET-05	5	400	291	142	231	11 or 21	0.75	1.8	100-178
PDLET-7.5	7.5	400	291	142	231	11 or 21	0.75	1.8	100-178
PDLET-10	10	500	370	142	231	11 or 21	0.75	2.5	150-220

*The trolley speed can be either 11m/min or 21m/min
