Low Profile Electric Barge Winch

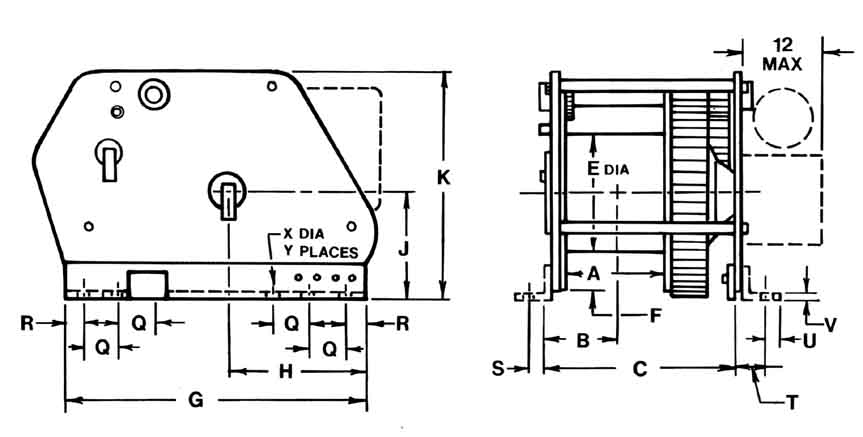

Drawing

Low Profile Electric Barge Winch

Series Dimensions (inches)
Capacity A B C E F G H J K Q R S T U V X Y
25* 9 7 3/8 17 7/8 10 3/4 3 5/8 28 12 1/4 10 1/4 21 4 3 1 2 1/8 1 1/2 13/16 10
50* 11 8 20 7/8 12 3/4 4 3/8 33 15 12 25 4 2 1 3/8 3 1 7/8 3/4 1 1/8 12
75* 10 8 1/8 21 1/4 16 4 1/2 41 16 1/2 14 29 4 2 1 1/2 3 1/2 1 1/2 1 1 1/8 16
* Series 25 - 25 HL-E1, 25HL-E2, 25HL-E3 / Series 50 - 50 HL-E1, 50HL-E2, 50HL-E3 / Series 75 - 75 HL-E1, 75HL-E2, 75HL-E3
