Stainless Swage Fittings

Stainless Swage Domehead

316 Stainless Steel

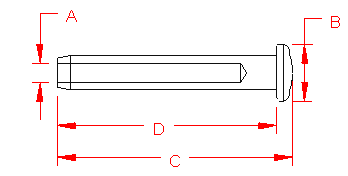

Stainless Swage Domehead  Stainless Swage Domehead


Item A Size B C D Before
Swage
After
Swage
Weight
S0738-0003 1/8" 0.39" 1.90" 1.77" 0.250" 0.219" 0.05 lb
S0738-0004 5/32" 0.45" 2.18" 2.05" 0.297" 0.250" 0.05 lb
S0738-0005 3/16" 0.55" 2.44" 2.28" 0.359" 0.313" 0.05 lb
S0738-0007 1/4" 0.71" 2.99" 2.79" 0.494" 0.438" 0.15 lb
