Stainless Swage Fittings

Stainless Swage Stud - UNF - Left Hand

316 Stainless Steel

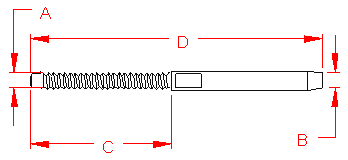

Stainless Swage Stud - UNF - Left Hand     Stainless Swage Stud - UNF - Left Hand

ITEM A B C D BEFORE AFTER
S0732-0703 1/4" 1/8" 2.20" 4.32" 0.250" 0.219"
S0732-0704 1/4" 5/32" 2.15" 4.64" 0.297" 0.250"
S0732-0705 1/4" 3/16" 2.19" 4.94" 0.359" 0.313"
S0732-0905 5/16" 3/16" 2.50" 5.12" 0.359" 0.313"
S0732-1005 3/8" 3/16" 2.68" 4.07" 0.359" 0.313"
S0732-1007 3/8" 1/4" 2.75" 5.87" 0.494" 0.438"
S0732-1307 1/2" 1/4" 3.00" 6.43" 0.494" 0.438"
