Stainless Swageless Quick Attach Fittings

Stainless Swageless Eye

316 Stainless Steel

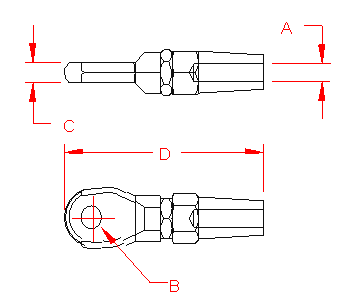

  Stainless Swageless Eye   Stainless Swageless Eye

ITEM A B C D WT
S0761-0003 1/8" 0.25" 0.23" 2.28" 0.10
S0761-0004 5/32" 0.33" 0.27" 2.68" 0.17
S0761-0005 3/16" 0.41" 0.31" 3.19" 0.23
S0761-0007 1/4" 0.48" 0.35" 3.82" 0.36
S0761-0009 5/16" 0.56" 0.41" 4.76" 0.60
S0761-0010 3/8" 0.64" 0.51" 5.23" 0.98
S0761-0013 1/2" 0.76" 0.59" 6.10" 1.50
