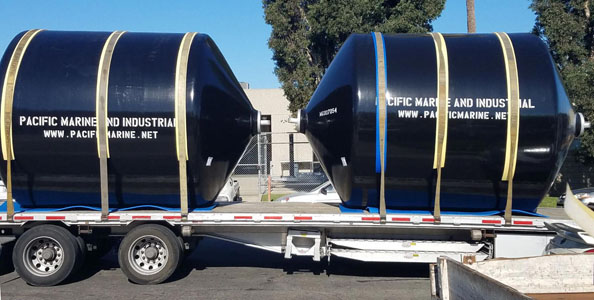

Foam Filled Fender

Sling Type Netless Fender

Download Marine Foam Filled Fender Product Catalog

Information Required to Quote Foam Filled Fenders

Foam-filled fenders are able to absorb 40% more energy than similar sized pneumatic fenders and their gently sloping reaction force curve provides 'softer' docking operations compared to buckling type fendering systems. This results in reduced stresses on docks, wharves, piers and vessels.

Features and Advantages:

High energy absorption and low reaction force

Conforms to hull protrusions

Tough, nylon filament reinforced polyurethane skin

Remains fully functional even if skin is punctured

Low maintenance

Easy installation

10 foot Diameter x 16 foot Long

BAE Systems Jacksonville, FL

Davit Cranes for Marine Fenders

Fenders (size)		Standard Capacity
English	Metric	Energy Absorption @ 60% Compression		Reaction Force @ 60% Compression
ft x ft	m x m	ft - kips	ton - m	kips	tons
2 x 4	0.6 x 1.2	11	2	20	9
2 x 6	0.6 x 1.8	18	3	33	15
2 x 8	0.6 x 2.4	25	4	47	21
2 x 10	0.6 x 3.0	32	4	60	27
3 x 5	0.9 x 1.5	31	4	45	20
3 x 6	0.9 x 1.8	39	5	48	22
3 x 8	0.9 x 24	55	8	68	31
3 x 10	0.9 x 3.0	71	10	88	40
3 x 12	0.9 x 3.7	87	12	108	49
3 x 14	0.9 x 4.3	103	14	128	58
4 x 6	1.2 x 1.8	60	8	56	26
4 x 8	1.2 x 2.4	89	12	83	38
4 x 10	1.2 x 3.0	118	16	111	50
4 x 12	1.2 x 3.7	146	20	136	62
4 x 16	1.2 x 4.9	203	28	189	86
4 x 20	1.2 x 6.1	260	36	242	110
5 x 8	1.5 x 2.4	135	18	100	45
5 x 10	1.5 x 3.0	180	25	134	61
5 x 12	1.5 x 3.7	225	31	167	75
5 x 14	1.5 x 4.3	269	37	200	91
5 x 16	1.5 x 4.9	313	43	233	106
5 x 18	1.5 x 5.5	357	49	366	121
6 x 12	1.8 x 3.7	300	41	186	84
6 x 14	1.8 x 4.3	364	50	225	102
6 x 16	1.8 x 4.9	427	59	265	120
6 x 18	1.8 x 5.5	491	68	305	138
6 x 20	1.8 x 6.1	54	77	344	156
7 x 14	2.1 x 4.3	487	67	259	117
7 x 16	2.1 x 4.9	574	79	305	138
7 x 18	2.1 x 5.5	660	91	351	159
7 x 20	2.1 x 6.1	747	103	397	180
7 x 22	2.1 x 6.7	833	115	443	201
8 x 14	2.4 x 4.3	619	85	288	130
8 x 16	2.4 x 4.9	733	101	341	155
8 x 18	2.4 x 5.5	847	117	394	179
8 x 20	2.4 x 6.1	961	133	447	203
8 x 22	2.4 x 6.7	1,075	149	500	227
9 x 16	2.4 x 4.9	890	123	368	167
9 x 18	2.7 x 5.5	1,032	143	427	194
9 x 20	2.7 x 6.1	1,175	163	486	220
9 x 22	2.7 x 6.7	1,318	182	545	247
10 x 16	3.0 x 4.9	1,081	150	402	182
10 x 18	3.0 x 5.5	1,258	174	468	212
10 x 20	3.0 x 6.1	1,435	198	534	242
10 x 22	3.0 x 6.7	1,612	223	600	272
10 x 24	3.0 x 7.3	1,811	250	674	306
11 x 18	3.5 x 5.5	1,482	219	501	265
11 x 20	3.6 x 6.1	1,696	241	573	279
11 x 22	3.4 x 6.7	1,910	264	646	293
12 x 24	3.7 x 7.3	2,595	358	850	385
13 x 26	4.0 x 7.9	3,240	448	985	447
14 x 28	4.3 x 8.5	4,000	553	1,130	513
