Cloverleaf Cargo Lashing Point - Flush Flush Lashing Pot for Elephants Foot Fitting

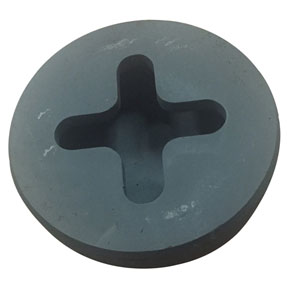

Flush Cargo Lashing Point CA-E1	Flush Cargo Lashing Point CA-E4
245mm Diameter	317mm Diameter
35mm Inside Opening Width	44.5mm Inside Opening Width
MBL 200 KN Tension	MBL 315 KN Tension
According to Nav Sea 804-1213717 Page 3 With Exception of Cast Bowl, Forged Bowl on Special Order	According to Nav Sea 804-1213717 Page 2 With Exception of Cast Bowl, Forged Bowl on Special Order

Counter Part is the Elephants Foot or the Speed Lash with Elephants Foot.

Type and Class Approved on Request
