Container Elephant Foot

CB-D1/03 Elephant Foot for Cloverleaf Foundations

Class Society Approved: ABS, DNV-GL, CCS and Others

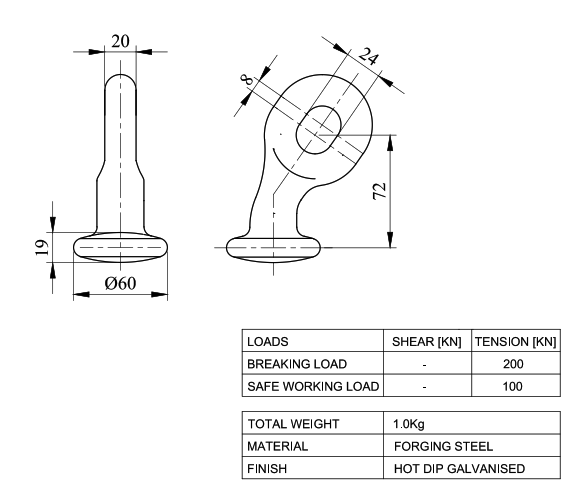

Container Elephant Foot

CB-D1/03

Container Elephant Foot

Purchase ONLINE Small Quantities of Container Lashing

Breaking load 20 ton

Weight .9 kg / 2.02 lbs. each

Eye Diameter = 24 mm

Counter parts: Cloverleaf Lashing Pots for Foot End and Shackle for Eye End

Type and Class Approved on Request

Container Elephant Foot

Return to Container Lashing Main Page

Purchase ONLINE Small Quantities of Container Lashing

Download Complete Container and Cargo Securing Catalog with Drawings

Container Lashing Design: Ship or Barge

Cargo Securing Manual Approval By Class Society

Container Ship Hatch Covers and Lashing Bridges

How Do Container Ships Work?

Other Related Products:


Container Lashing	Cargo Straps	Cargo Chains & Tensioners	Cargo Lashing Points


Container Lifting & Towing	New Shipping Containers	Shipping Container Parts	Shipping Container Casters

Similar Design and Function Cross Reference:

GLS CB-D1

MacGregor K-H

MacGregor K-EBH

SEC C-HH-13-20

ILS CL9

ILS CL11

Lucky Sea PH-1

TEC CD-30

Taiyo F-201
