Cargo Lashing Chain

16, 13, 11 and 9 mm Lashing Chains

CB-D1 Chain

cargo lashing chain
Example Lashing Chain Assembly


Chain Lashing With or Without Hooks



Information Needed to Quote Chain Lashings


Specifications:



Length as desired



Chain Size as Desired:


Chain Size Breaking Load
16mm 30.5 Ton
13mm (Standard) 20 Ton
11mm 15 Ton
9mm 10.2 Ton

End Fittings:
Pin Hook or Shallow Eye Hook or Elephants Foot or Jaw or Blank Chain End as Desired


Painted with Color (Red Standard) as Desired

or Galvanized

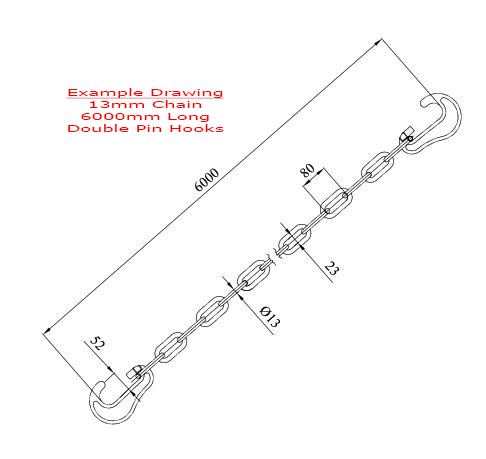

Sample Drawing:
13mm Long Link Chain Shown with CB-D1/03 Pin Hook Each End
13mm long link cargo lashing chain with hooks



cargo securing chains with hooks Cargo Lashing Chain and Hooks cargo securing elephants foot
Shallow Eye Hook  Chain Hook with Pin Elephants Foot
