Industrial Oil Water Monitor

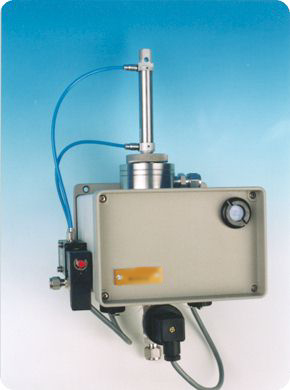

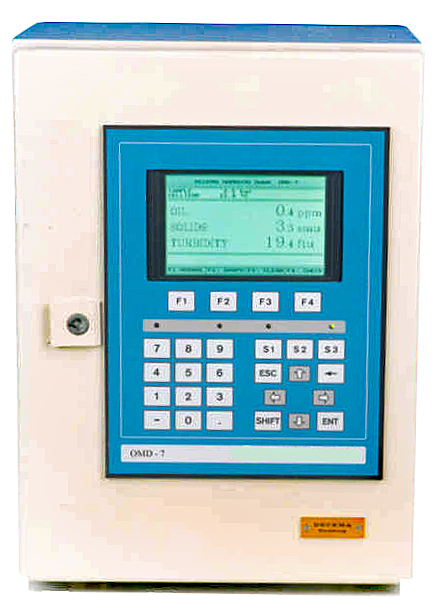

Monitor OMD-7

Accurate monitoring of:

Oil-in-Water      Solids-in-Water      Turbidity

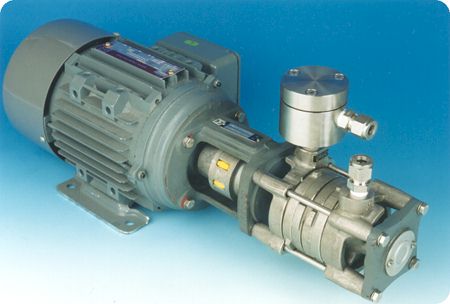

Sample Conditioning Unit

The measurement method employs light scattering as the base technique but uses a novel concept whereby multiple wavelength light sources combined with multiple detector angles are used to differentiate between the various contaminants within the water phase.  Great attention has been given to ensure the instrument construction is rugged whilst remaining easy to use. The proven Automatic Cell Cleaning Device, as used on our OMD range of products, has been incorporated to ensure the Measuring Cell remains in 100% optimum condition throughout even the most demanding of applications. All variable operational parameters can be adjusted on site by key inputs at the Monitor Key Pad. These include Oil, Solids and Turbidity range and Alarm Set Points, Alarm Time Delays and Frequency of Cleaning Cycle.

By use of this novel Light Scattering technique the OMD-7 is capable of measuring Free Oil, Solids and Turbidity in the following applications:

Surface Water Run-Off from Power Stations, Chemical Plants, Refineries and Petroleum Tank Farms. Boiler Condensate returns, Produced Water Discharge from Production Platforms and FPSO's, Cooling Water in a variety of Industrial environments.
